Clipping Circuit Apparatus.

INR 5544
In stockcod available
Phone Number

08048036175

Please keep 0 before dialling the number.

Email Address mnc.naveen@gmail.com

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Address Correspondence Address: Shop No. 20, 2nd Floor, Srirama Tower, Bogulkunta, Telangana

Hyderabad, India, 500001

Description

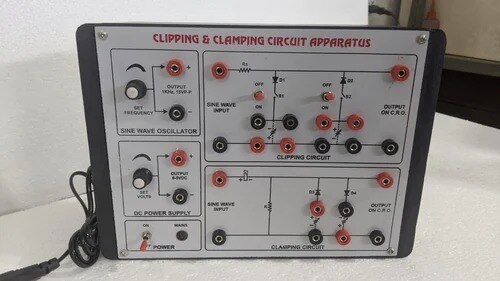

The Clipping Circuit Apparatus is a laboratory instrument designed to demonstrate the operation and characteristics of electronic clipping circuits, which modify signal waveforms by removing specific voltage portions. Description Circuit Configuration: The apparatus includes configurable diode-resistor networks capable of positive, negative, or dual (both) clipping to set voltage levels. Function: Clipping circuits use diodes to “clip” or cut off voltage above or below a predetermined threshold, shaping the input signal by eliminating peaks beyond set levels. Operation: With an applied AC or varying waveform signal, the apparatus allows users to observe, through output terminals or an oscilloscope, the effects of clipping on signal amplitude. Features: The device offers terminal posts for external signal sources, adjustable reference voltage options, test points for oscilloscope connection, and switches for changing clipping configuration. This apparatus is essential for practical study and visualization of amplitude-limiting circuits, widely used in analog signal conditioning and electronic circuit protection applications.The Clipping Circuit Apparatus is a laboratory device that demonstrates the function and analysis of clipping circuits, which modify input signal waveforms by removing specific voltage portions. Description The apparatus contains configurable diode-resistor networks for positive, negative, or dual clipping modes. By using diodes and resistors, the circuit removes (clips) parts of an input signal above or below set voltage thresholds, effectively restricting the amplitude of output waves. Input and output terminals allow easy connection to a signal generator and oscilloscope to visualize how the waveform is shaped after passing through the circuit. The apparatus may include adjustable reference voltage options and easily selectable configurations for different clipping types.

Model No. N-EL062
