Clipping & Clamping Circuit Apparatus.

INR 5880
In stockcod available
Phone Number

08048036175

Please keep 0 before dialling the number.

Email Address mnc.naveen@gmail.com

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Address Correspondence Address: Shop No. 20, 2nd Floor, Srirama Tower, Bogulkunta, Telangana

Hyderabad, India, 500001

Description

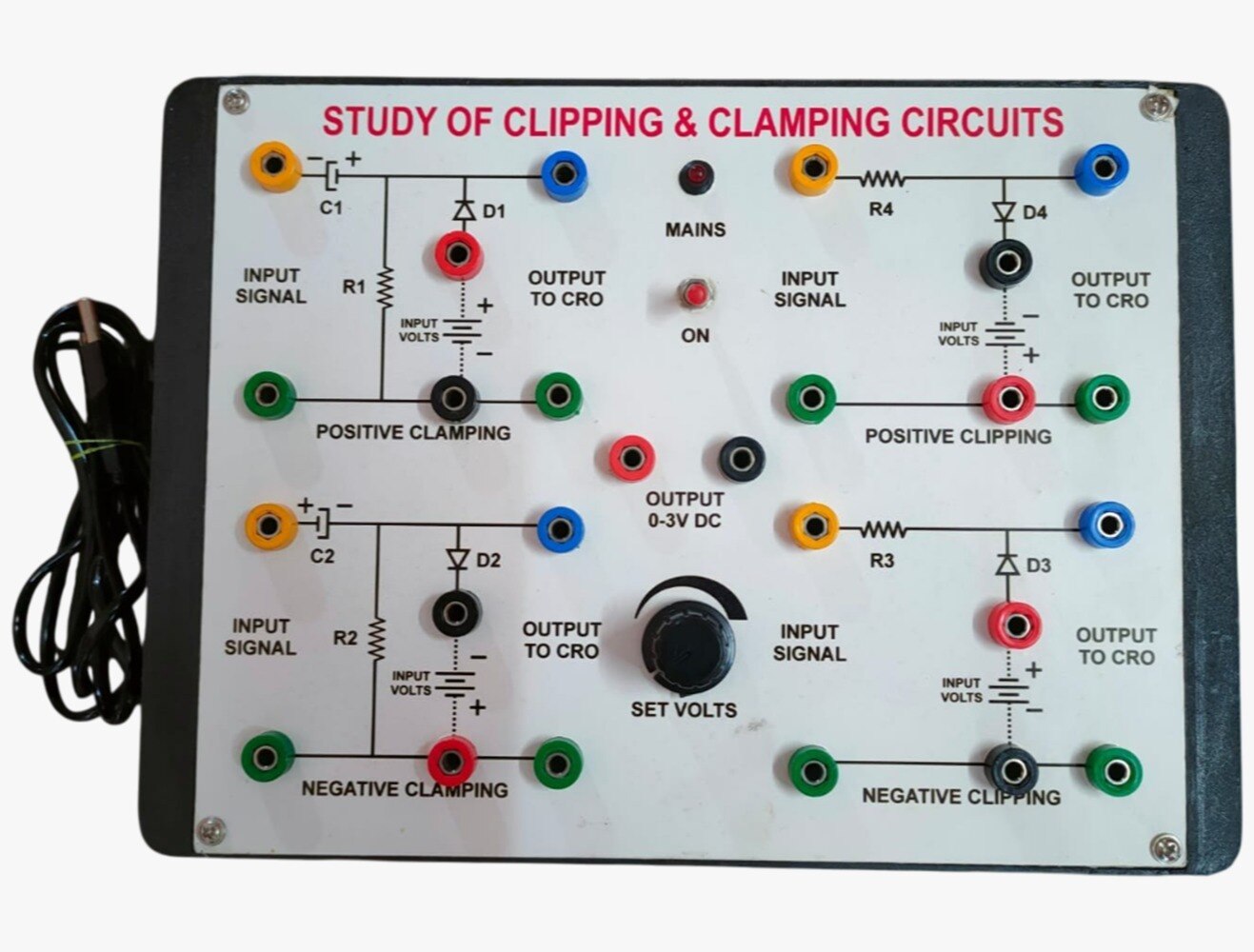

Description Clipping Circuits: These circuits use diodes and resistors to “clip” or remove portions of an input waveform that exceed certain voltage levels. The apparatus includes configurable setups for both positive and negative clipping, allowing users to observe how output signals are limited in amplitude. Clamping Circuits: Clamping circuits shift the entire signal waveform up or down, adjusting its DC level without altering its shape. This is achieved with diodes, capacitors, and resistors. The apparatus provides arrangements for positive and negative clamping demonstrations. Features: Includes test points, robust terminals, and built-in arrangements for easy signal input and oscilloscope connection. Multiple switchable options allow quick change between different clipping and clamping network configurations. Operation: When a waveform (usually from a function generator) is applied, users can observe the modifications at the output—either limiting (clipping) or shifting (clamping)—directly on a connected oscilloscope or meter. This apparatus is essential for electronics labs, offering valuable practical insight into signal conditioning and preparation in analog circuit design.The Clipping & Clamping Circuit Apparatus is a laboratory tool designed to demonstrate the principles of signal waveform modification by limiting and shifting voltage levels using diode-based circuits. Description The apparatus is equipped with configurable diode-resistor networks for clipping circuits, which limit the input waveform’s amplitude above or below preset voltage thresholds, effectively “clipping” portions of the signal. Clamping circuit sections use diode-capacitor-resistor combinations to shift the entire waveform up or down, altering its DC reference level without changing its peak-to-peak amplitude. Users can connect a variable signal source and observe the effects using built-in test points and terminals, as well as connect to an oscilloscope for visual analysis. Switches or arrangement options enable quick selection between different types of clipping (positive, negative, dual) and clamping circuits for comprehensive experimentation. This apparatus is essential for electronics education, helping students understand waveform conditioning, signal level control, and practical circuit applications in analog electronics.

Model No. N-EL061
