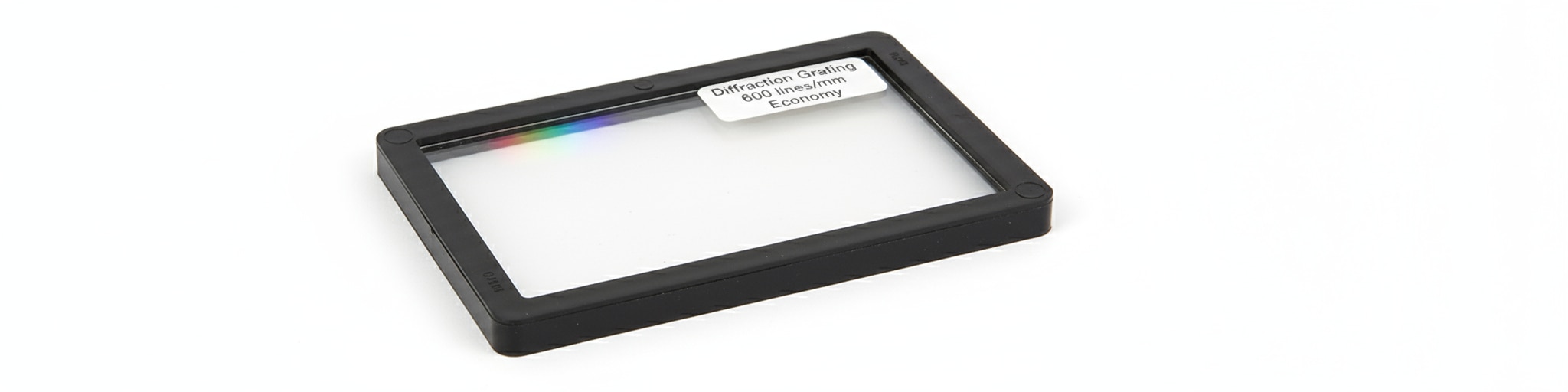

Diffraction Gratings 600 lines Economy

The Diffraction Grating with 600 lines per mm (often referred to as an economy model) is an optical component designed to separate polychromatic light into its component wavelengths with high precision and efficiency. It features 600 finely spaced grooves or lines etched or ruled on its surface per millimeter, allowing it to diffract incoming light at specific angles based on wavelength, thus producing a spectrum.

Key Features and Specifications:

Groove Density: 600 lines per millimeter, providing a balance between resolution and brightness ideal for educational and general laboratory use.

Blaze Angle: Typically optimized for maximum efficiency at a particular wavelength (often in the visible region, such as around 400-750 nm), enhancing brightness of diffracted light in the desired order.

Material and Coating: Usually ruled onto a reflective aluminum-coated glass substrate to enhance reflectivity and durability while maintaining optical clarity.

Dimensions: Commonly available in sizes such as 25 mm x 25 mm or 50 mm x 50 mm, suitable for mounting in various optical instruments and setups.

Efficiency: The grating can achieve diffraction efficiencies in the range of 45-80% at the blaze wavelength, ensuring bright and sharp spectral lines critical for spectroscopy.

Applications: Widely used in spectroscopy, wavelength dispersion studies, laser beam steering, optical communication analyses, and educational demonstrations.

Working Principle:

The grating operates by constructive interference of light waves diffracted by the grooves. The grating equation

n

λ

=

d

(

sin

⁡

θ

i

+

sin

⁡

θ

d

)

nλ=d(sinθ

i

+sinθ

d

) governs the angles where maximum diffraction occurs, with

n

n being the diffraction order,

λ

λ the wavelength,

d

d the groove spacing (inverse of groove density), and

θ

i

,

θ

d

θ

i

,θ

d

the incident and diffraction angles respectively.

Economy Model:

The economy version offers these capabilities at a cost-effective price point, making it accessible for teaching laboratories and basic spectroscopy needs without compromising much on performance. It is a practical choice for users looking for essential diffraction features in a budget-friendly package.

This grating is a versatile and fundamental tool in optics and photonics, enabling detailed analysis of light spectra with consistent quality in an affordable form factor
