Diode Mounted

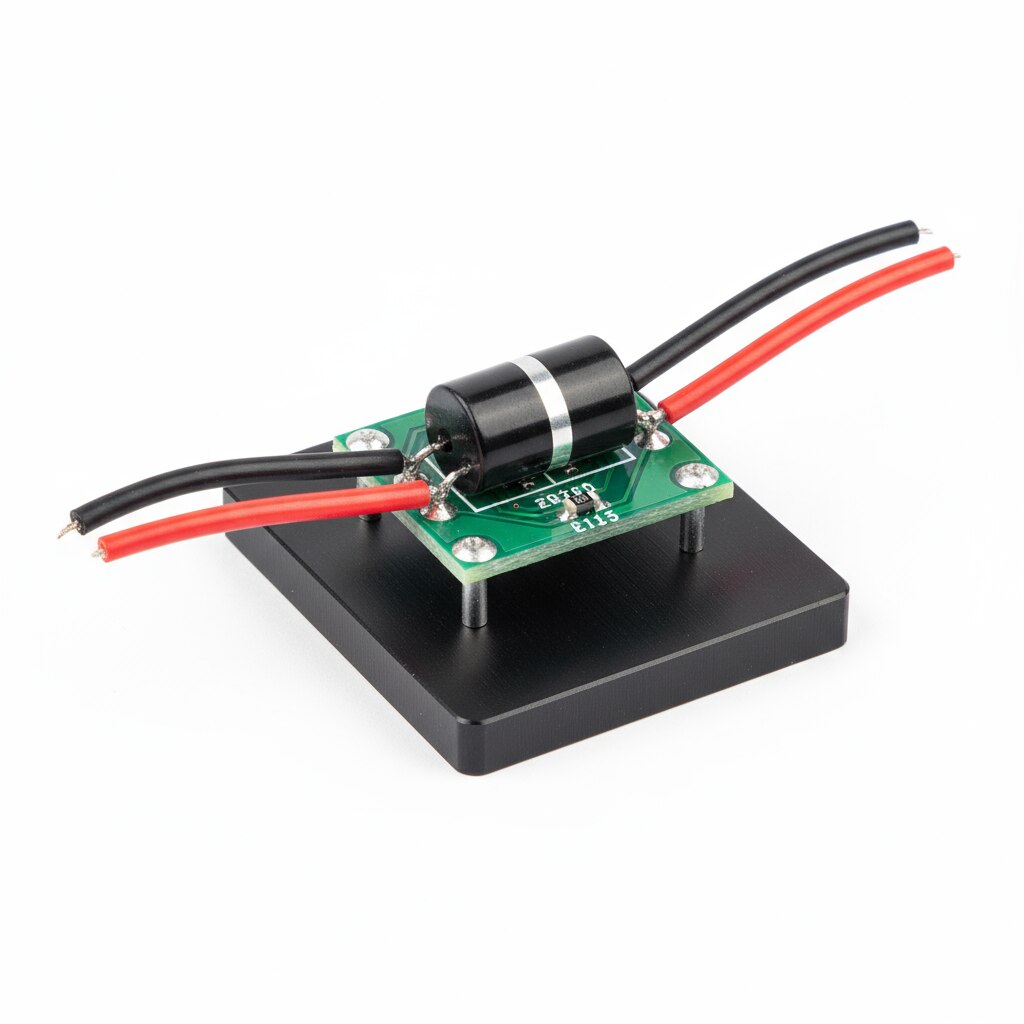

A mounted diode is a semiconductor device that allows current to flow primarily in one direction and is fixed onto a base or holder for ease of use and integration into electronic circuits. The core structure of the diode is based on a p-n junction, which consists of a p-type semiconductor and an n-type semiconductor joined together to create a depletion region that controls electrical flow.

The mounted diode typically includes:

P-type region (anode): Contains positively charged holes.

N-type region (cathode): Contains negatively charged electrons.

Depletion region: Formed at the junction, acting as a barrier controlling current flow.

Terminals: The anode and cathode terminals allow connection to the external circuit.

Protective casing: The diode is encased in a protective package that can vary in size and type, including through-hole or surface-mount packages, designed to protect the semiconductor and assist in thermal dissipation.

Mounted diodes come in various types such as rectifier diodes, Zener diodes, Schottky diodes, and LEDs, each serving different functions like power conversion, voltage regulation, high-speed switching, or light emission. The mounting facilitates stable mechanical placement and electrical connectivity, making the diode suitable for practical electronic applications in circuits, power supplies, and signal processing.

This arrangement ensures that the diode performs its rectification or regulating functions reliably, with easy installation and replacement in electronic devices.
