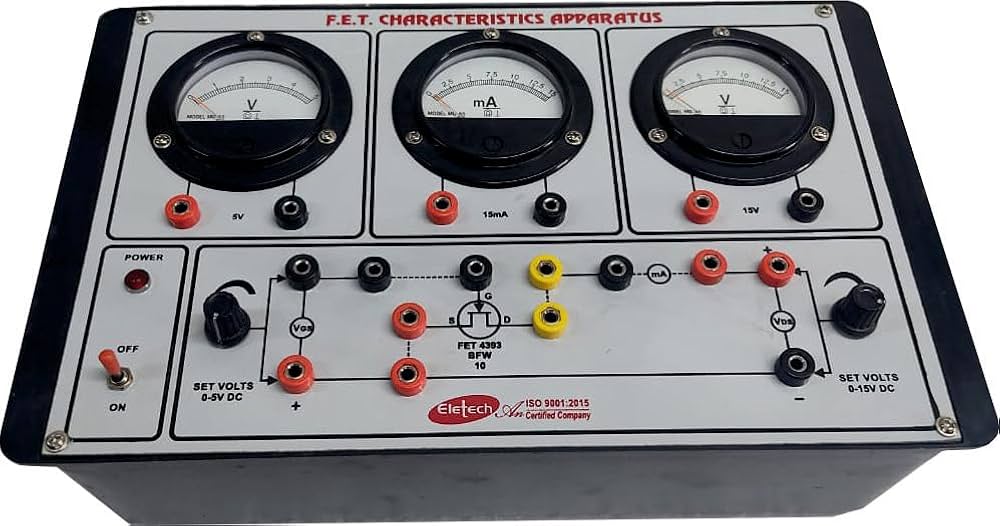

FETCharacteristics Apparatus with Regulated Power Supplies

The FET Characteristics Apparatus with Regulated Power Supplies is a laboratory instrument designed to study and plot the input and output characteristics of a Field Effect Transistor (FET) using precise voltage control. The setup typically includes two continuously variable DC regulated power supplies (for example, 0-15V and 0-5V), voltmeters, ammeters, and connection terminals arranged on a board for straightforward experimental use.

Key Features

The apparatus allows the measurement of both drain and transfer characteristics of a FET by providing controlled DC voltages to the circuit.

Common features include BFW10 FET (or equivalent), breadboard or fixed connections, switches, and clear connection points for source, gate, and drain terminals.

High-quality regulated power supplies ensure accurate readings and repeatable experiments by eliminating voltage fluctuations.

Built-in analog meters display voltages and currents for monitoring circuit behavior in real time.

Principle of Operation

The FET is a three-terminal device: Source, Gate, and Drain. The voltage applied to the Gate controls the current between the Source and Drain, making the FET a voltage-controlled device.

By plotting the drain current (ID) versus drain-source voltage (VDS) for various fixed gate-source voltages (VGS), students can observe Ohmic, Cut-off (Pinch-off), Saturation (Active), and Breakdown regions of the transistor.

The high input impedance and low noise characteristics of the FET are highlighted during these experiments, making it a useful teaching tool for amplifier and switching circuit studies.

Applications

Used in electronics and physics laboratories to teach and demonstrate FET operation and characteristics.

Suitable for both undergraduate and research-level studies focused on analog electronics, circuit analysis, and transistor behavior.

In summary, this apparatus is essential for hands-on learning about FETs, providing stable and accurate means to explore essential properties and practical applications of modern semiconductor devices.
