The Flashing & Quenching of Neon Apparatus is an experimental setup used to demonstrate the electrical properties of gases through the controlled flashing (discharge) and quenching (turning off) of a neon lamp.
Description
This apparatus typically comprises a neon lamp connected with a capacitor, resistor, and adjustable DC power supply.
When the voltage across the capacitor reaches the breakdown voltage of the neon lamp, the lamp flashes as it conducts—a visible discharge occurs.
After the flash, the lamp “quenches,” or turns off, as the voltage drops below its sustaining value. The capacitor then charges again, repeating the cycle.
The process allows observation of the time interval between flashes, which depends on the values of the capacitor and resistor as well as the neon lamp characteristics.
Useful for demonstrating gas discharge physics, relaxation oscillator behavior, and threshold phenomena in electronics and physics experiments.
This setup visually illustrates electrical breakdown and repetitive discharge events in a gas-filled tube, reinforcing concepts of threshold voltage, capacitor charging, and relaxation oscillation.The Flashing & Quenching of Neon Apparatus is a laboratory device designed to demonstrate the phenomenon of controlled flashing (discharge) and quenching (extinguishing) of a neon lamp in a simple relaxation oscillator circuit.
Description

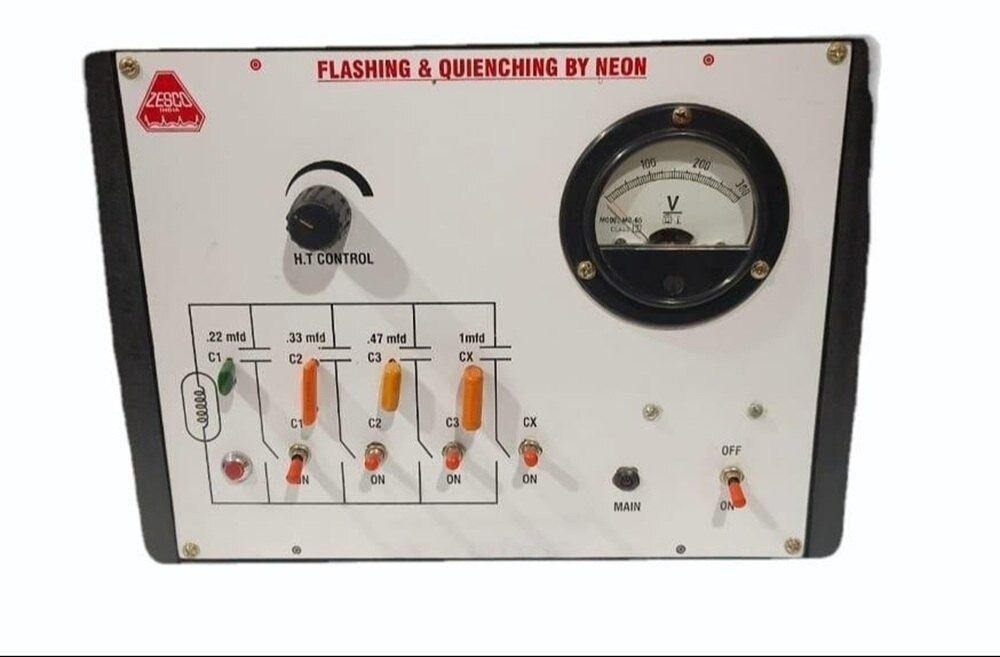

The apparatus features a neon lamp connected in series with a high-value resistor and a capacitor, all powered by an adjustable DC supply.
When voltage is applied, the capacitor slowly charges through the resistor until the voltage across the lamp reaches its striking (breakdown) potential, causing the neon lamp to flash (conduct).
As soon as the lamp conducts, the capacitor rapidly discharges through the lamp, lowering the voltage and causing the lamp to quench (turn off).
The charging and discharging process repeats automatically, causing periodic flashes. The time interval between flashes (oscillation frequency) depends on the resistor and capacitor values, as well as the characteristics of the neon lamp.
This apparatus offers a clear visual demonstration of gas discharge, relaxation oscillation, and breakdown/quenching behavior, making it ideal for teaching threshold effects and capacitor charging in electronic and physics experiments.
