The Half Wave/Full Wave & Bridge Rectifier Apparatus is a laboratory instrument designed to demonstrate the conversion of AC to DC using three classic rectification circuits: half-wave, full-wave (center-tapped), and bridge rectifiers.
Description
Half-Wave Rectifier: Employs a single diode that allows only one half of the AC waveform (positive or negative) to pass through, blocking the other half. The apparatus includes a simple diode circuit with input and output terminals for visualization.
Full-Wave Rectifier: Uses two diodes with a center-tapped transformer, allowing both halves of the AC waveform to contribute to the output. Each half-cycle is rectified, yielding a more continuous DC output than in half-wave mode.
Bridge Rectifier: Consists of four diodes arranged in a bridge configuration, eliminating the need for a center-tapped transformer. Both polarities of AC are converted to pulsating DC, providing efficient, full-wave rectification.

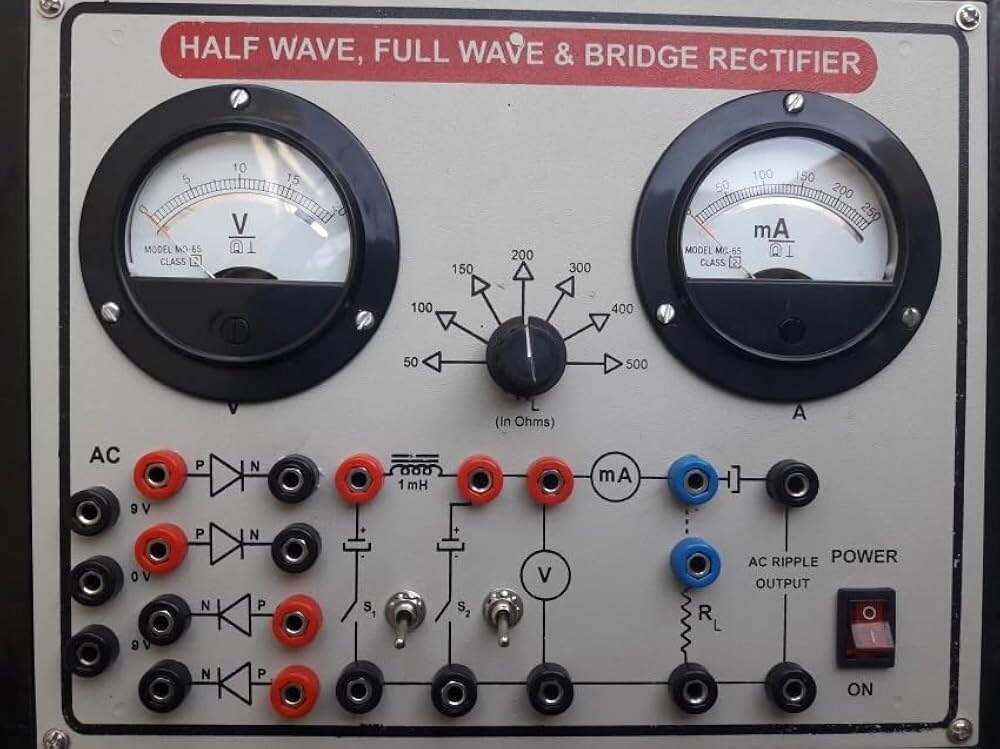

Features: The device includes switchable circuit options, rugged terminal posts for transformer/signal input and load/output measurement, and built-in test points for oscilloscope or voltmeter connection.
Operation: A function generator or transformer provides the AC input. Output waveforms for each rectifier mode are observed to study rectification efficiency, waveform shape, and ripple.
This apparatus is crucial in electronics and physics laboratories, allowing hands-on exploration of rectification theory, diode characteristics, and practical AC-to-DC conversion techniques.The Half Wave/Full Wave & Bridge Rectifier Apparatus is a laboratory device designed to study and compare different methods of converting alternating current (AC) to direct current (DC) using rectifier circuits.
