The Measurement of Peak, Average, and RMS Value of an AC Signal involves using specialized laboratory apparatus or mathematical methods to determine three key parameters of alternating signals—Peak (maximum), Average, and Root Mean Square (RMS) values—essential for electrical engineering and practical circuit analysis.
Apparatus Description

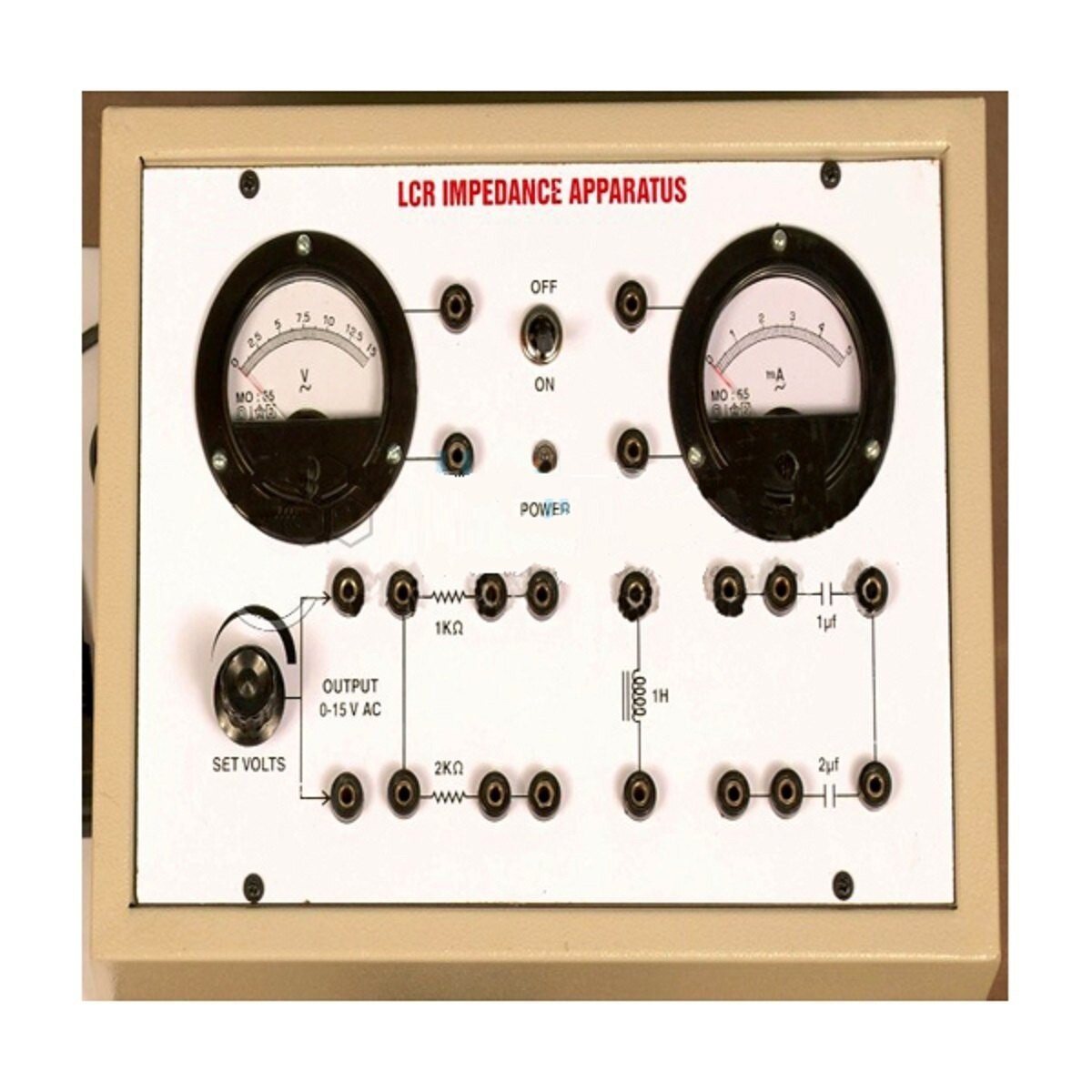

The typical setup consists of a sine wave generator, step-down transformer, circuit board with diagram printed for peak and average value measurement, and terminal connections for testing.
It may include analog meters, oscilloscopes (for accurate peak/peak-to-peak measurements), and sometimes hot-wire or rectifier instruments for measuring RMS and average values directly.
Multimeters and specialized RMS meters (true-RMS) can provide digital readings for practical measurements.
Methods of Measurement
Peak Value: Maximum instantaneous value in one AC cycle; measured most accurately with an oscilloscope, observing the waveform crest.
Average Value: Arithmetic mean of all instantaneous values over a half-cycle for sinusoidal signals (full-cycle average is zero); calculated using mathematical formulas or rectifier-based instruments.
RMS Value: Root-mean-square of all instantaneous values; represents the effective DC-equivalent value of an AC source for power delivery and heating effect in resistive loads. For sinusoidal AC:
V
R
M
S
=
V
peak
2
V
RMS
=
2
V
peak
and
V_{text{average}} = 0.637,V_{text{peak}} $$.[8][1][10]
Many AC meters and multimeters display the RMS value directly, which is most relevant for computing power and comparing AC with DC quantities.
Applications
These measurements are vital for the design and operation of AC powered circuits, load analysis, calculating energy dissipation, and specifying safe values for electrical components. Peak values inform insulation and device ratings, RMS values provide effective power data, and average values offer useful data for signal processing and rectification.
In summary, the measurement of these AC signal parameters forms the foundation for practical and theoretical analyses in electrical engineering labs and industry.The Measurement of Peak, Average, and RMS Value of an AC Signal uses specialized apparatus and mathematical methods to quantify the three principal values of an alternating signal: peak (maximum), average, and root mean square (RMS), all of which are essential for electrical analysis and circuit design.
Apparatus Description
Typical setups feature a sine wave generator, step-down transformer, printed circuit board with measurement wiring, analog meters, and terminal terminals for connecting devices under test.
An oscilloscope is often used for observing AC waveform peaks, whereas RMS and average values can be measured via analog meter movements, true-RMS digital meters, or hot-wire instruments.
Many labs use trainers purpose-built to facilitate understanding and recording of these values both visually (oscilloscope) and numerically (meters).
Measurement Principles
Peak Value: The highest instantaneous value attained by the waveform in one cycle; typically measured using an oscilloscope by tracing the waveform’s crest.
Average Value: The mean of all instantaneous values in a cycle (for sinusoidal AC, over a half-cycle); commonly determined mathematically or by rectifier-averaging instruments.
RMS Value: The square root of the average of the squares of all instantaneous values; represents the equivalent DC value for power delivery. For sine waves:
V
R
M
S
=
V
peak
2
V
RMS
=
2
V
peak
V_{text{average}} = 0.637,V_{text{peak}} $$.[1][10][9]
Applications
These measurements define the safe and effective operation of AC-powered devices, determine energy dissipation, and provide data for specifying components and safety margins in electrical and electronic systems.
The respective values are standard outputs of AC meters and multimeters, making this measurement a foundational practice in electronics labs and industry.
