Description

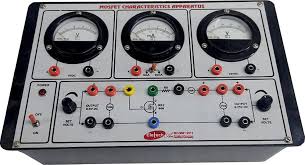

The MOSFET Characteristics Apparatus with Regulated Power Supplies is a laboratory instrument designed to analyze and plot the behavior of Metal-Oxide-Semiconductor Field-Effect Transistors (MOSFETs) under controlled power conditions. The apparatus includes two continuously variable regulated DC power supplies—commonly rated at 0-5VDC and 0-25VDC with current capacities such as 150mA—ensuring stable voltage levels necessary for precise measurements.
Key Features
The apparatus features onboard analog meters for voltage and current measurement at various circuit points, allowing direct observation of MOSFET characteristics like drain and transfer curves.
Standard components include MOSFET sockets or breadboards for different device types, switches, and clearly marked terminals for drain, source, and gate connections.
The regulated power supplies guarantee smooth operation without voltage fluctuations, supporting high repeatability and accuracy in experiments.
Working Principle
MOSFETs contain three main terminals (Source, Gate, Drain) and operate as voltage-controlled devices with extremely high input impedance; the current through the Drain-Source path is modulated by the Gate-Source voltage.
The apparatus lets users plot output (drain) characteristics and transfer characteristics by varying VGS and VDS, demonstrating behavior in linear (triode), saturation, and cut-off regions.
Both n-channel and p-channel MOSFETs can be tested for enhancement and depletion mode operations.
Applications
Ideal for electronics education and research, used to study switching and amplification properties of MOSFETs, which are essential for analog and digital circuit development.
Used in academic labs for illustrating power device principles and preparing students for practical circuit design involving semiconductor devices.
This apparatus is a fundamental training tool, providing hands-on experience for understanding MOSFET operation, characteristics, and their pivotal role in modern electronics.
