Description

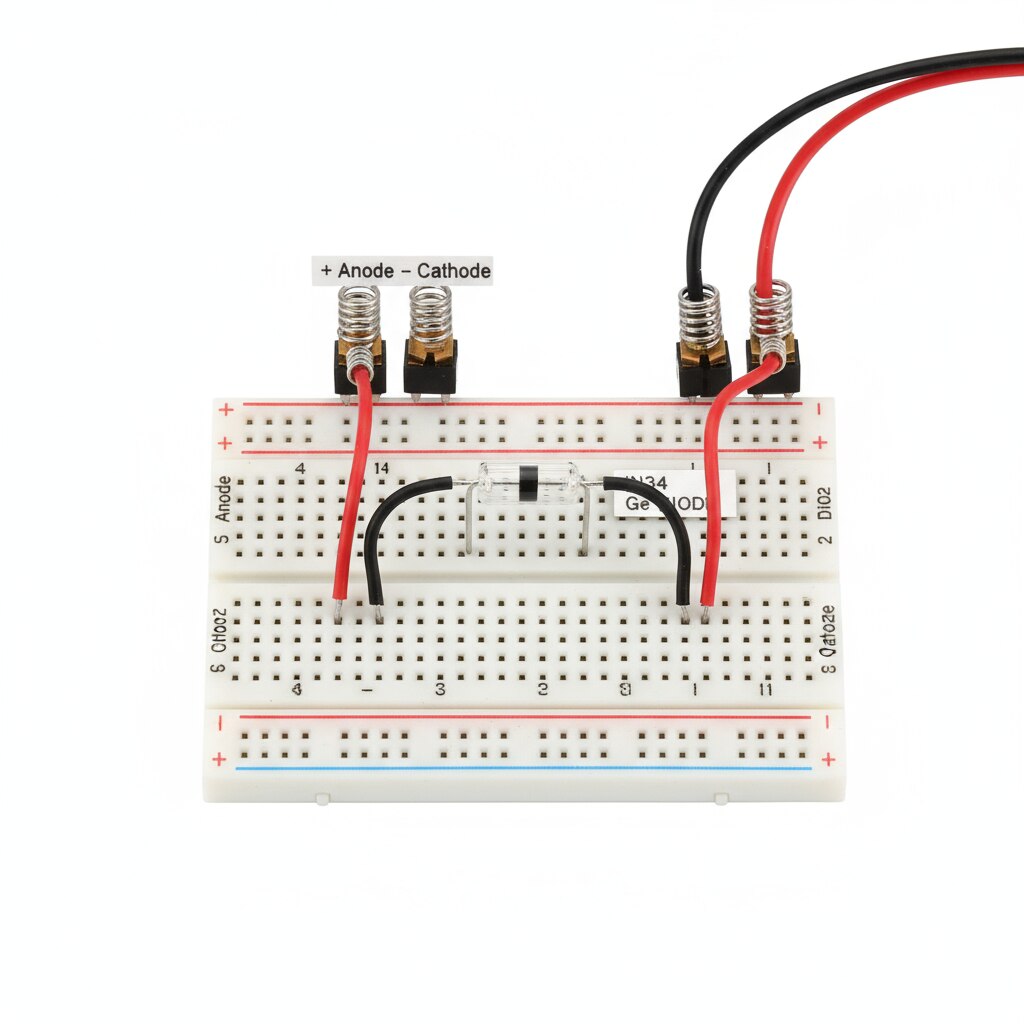

The PN Junction Diode on Board (IN34 or equivalent) is a fundamental semiconductor device used to allow current to pass in one direction while blocking it in the opposite direction, widely used in signal detection, rectification, and switching applications.
Key Features
Construction: Made using a P-type and N-type semiconductor forming a junction, often encapsulated on a board for easy integration.
1N34 Germanium Diode: Typically employed as the IN34 equivalent, this diode has a low forward voltage drop of around 0.2 to 0.3 volts and low leakage current, making it ideal for high-frequency and low-signal applications.
Peak Inverse Voltage (PIV): Around 60-65 volts, protecting the diode from reverse voltage damage.
Maximum Forward Current: Usually around 50mA average rectified current, with surge capability up to 0.5A peak forward current.
Temperature Range: Operates efficiently within -55°C to +75°C, suitable for various environmental conditions.
Characteristics: The diode exhibits excellent linearity and low junction capacitance, which helps in detecting and demodulating radio, TV, FM signals, and other communication signals.
Applications: Widely used in AM/FM detectors, TV audio detectors, ratio detectors, RF input probes, and for signal demodulation in radio receivers.
Working Principle
The diode consists of a PN junction where charge carriers (electrons and holes) move under bias conditions.
Forward bias allows current flow with a small voltage drop (~0.3V for germanium diodes).
Reverse bias blocks current flow except for a very small leakage current until breakdown voltage is reached.
This property enables effective rectification and signal detection in electronic circuits.
This PN junction diode on board featuring the IN34 or an equivalent germanium diode is a critical component for low-voltage, high-frequency signal applications, offering reliability, stability, and precise performance in communication and electronic devices.
