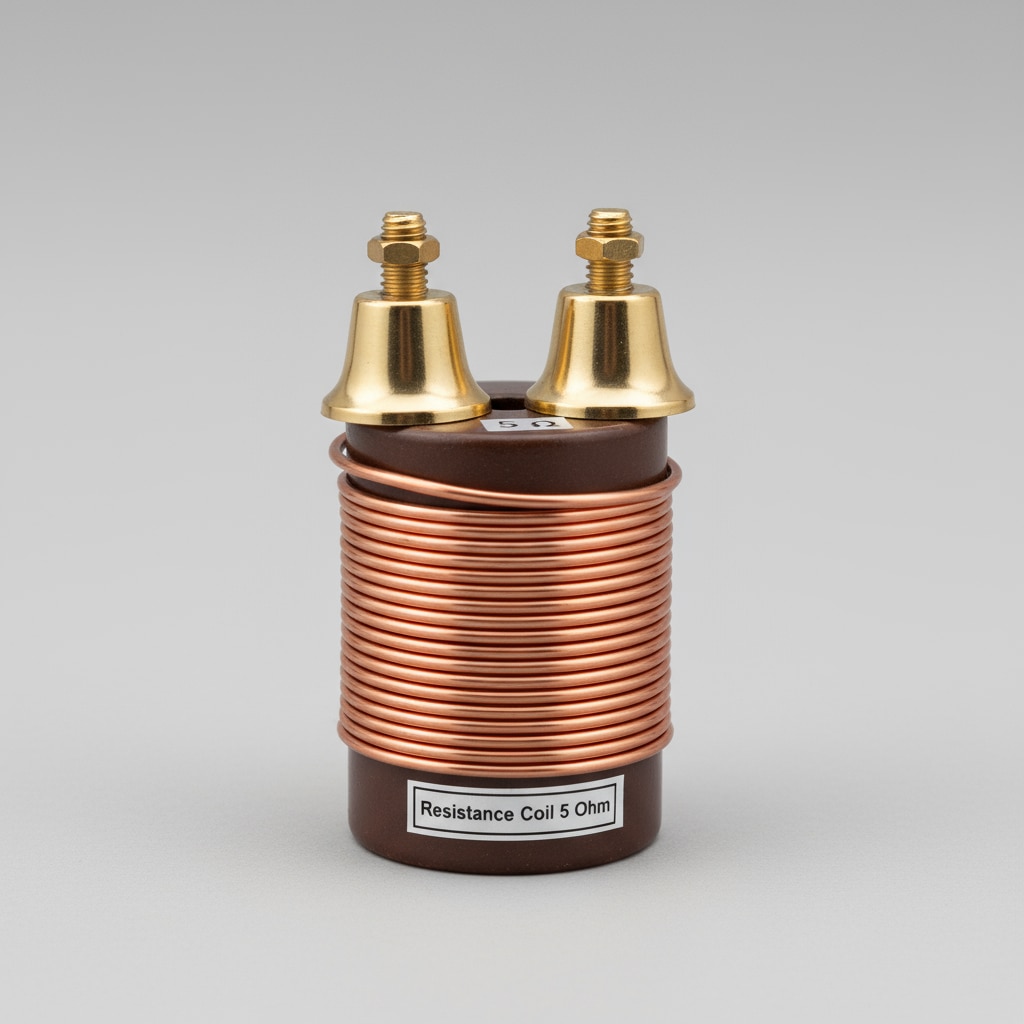

Resistance Coils 5 Ohm with Bell Terminals

escription

Construction: These coils consist of resistance wire wound tightly on an insulated form, usually housed within a transparent or semi-transparent casing for protection. Bell terminals are bell-shaped connectors for firm and quick connection to circuits.

Resistance Rating: The coil provides a constant resistance value of 5 Ohms, calibrated to a high accuracy, typically within ±1% tolerance, ensuring reliable circuit performance.

Power Rating: These coils can dissipate moderate power (around 4 watts continuously and up to 10 watts in short bursts), suitable for laboratory circuit experiments without overheating.

Applications: Widely used in educational physics experiments, resistance measurement setups, calibration procedures, and circuits requiring controlled resistance. The bell terminals facilitate easy attachment and detachment in various configurations.

Additional Features: The coils have low inductance due to careful winding, making them suitable for both DC and low-frequency AC circuits.
