Solar Cell Characteristics Apparatus

The Solar Cell Characteristics Apparatus is a laboratory system designed to analyze the current-voltage (I-V) characteristics of a solar (photovoltaic) cell under varying illumination and load conditions, helping assess its efficiency and performance parameters.

Apparatus Description

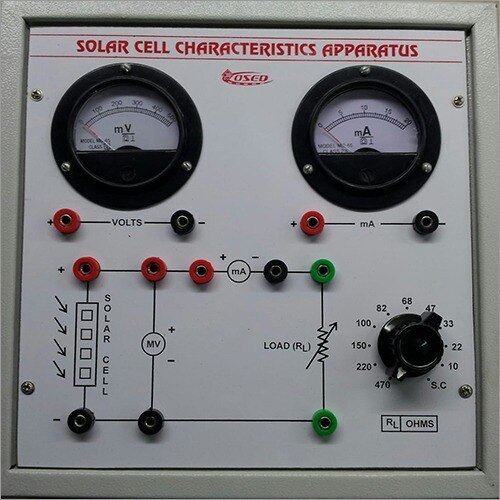

The setup typically comprises a solar cell mounted on a board, a variable light source (such as a 100W lamp or LED), a variable resistor or potentiometer for load adjustment, and analog or digital meters for measuring current and voltage. Some trainers include a distance scale to alter illumination and sets of optical filters for spectral studies.

All components are often integrated on a self-contained panel with connection points for easy circuit assembly.

Working Principle

The solar cell operates using the photovoltaic effect: when illuminated, photons with energies greater than the semiconductor bandgap create electron-hole pairs, generating a photocurrent.

The current and voltage are measured as the external load is varied, which allows plotting of the I-V curve, determination of maximum power point, short-circuit current (I

S

C

SC

), open-circuit voltage (V

O

C

OC

), fill factor (FF), and conversion efficiency.

Typical Experimental Procedure

Connect the solar cell, meters, and load as per the circuit diagram.

Illuminate the cell with the lamp at controlled distances/intensities.

Vary the load resistance and record voltage and current for each setting.

Plot I-V and P-V (power–voltage) curves from the data, and use these to analyze solar cell parameters including V

O

C

OC

, I

S

C

SC

, FF, and efficiency.

This apparatus provides foundational, hands-on training for evaluating renewable energy sources and is commonly used in engineering and physics teaching laboratories.
