Description

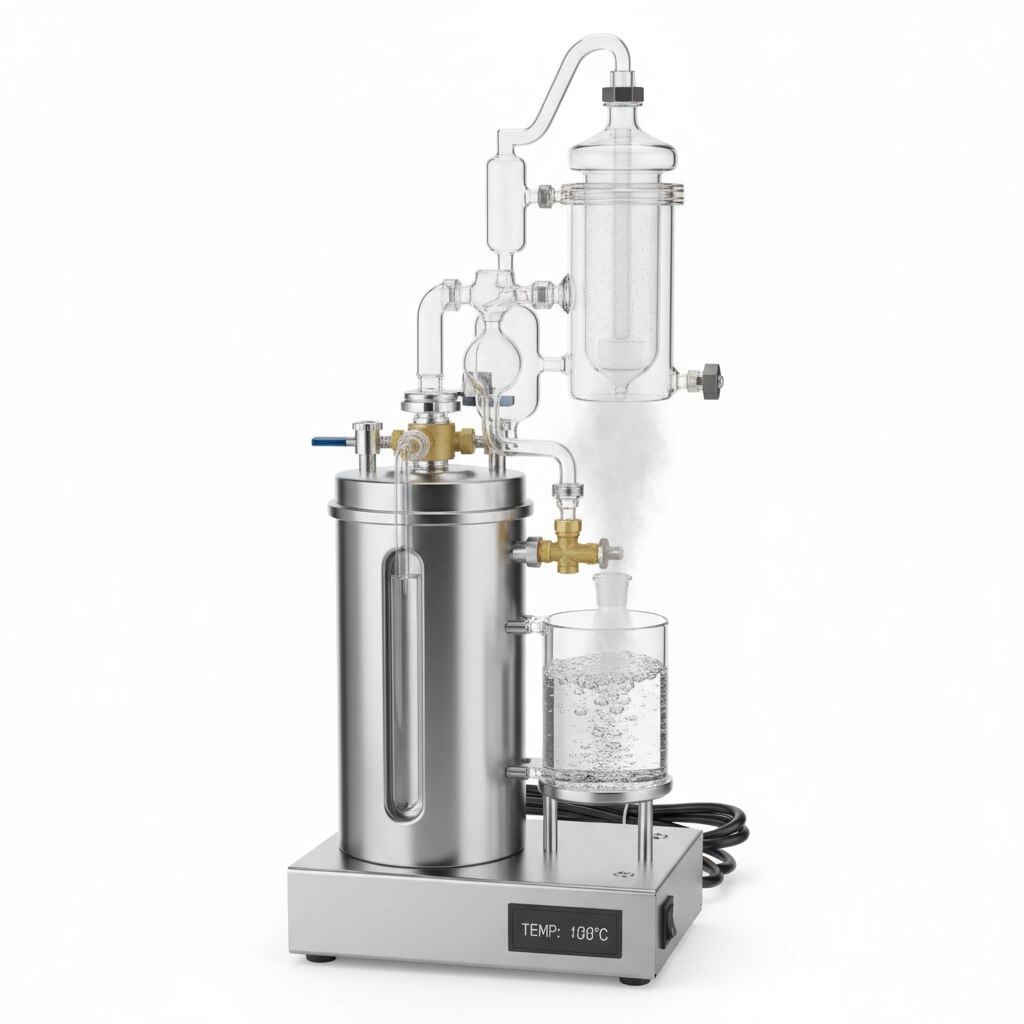

The steam generator consists of a water reservoir or tank that is heated by an energy source, such as an electric coil, gas burner, or waste heat from industrial processes.
Water inside the tank heats up and reaches boiling point, producing steam under pressure.
The generated steam is then channeled through an outlet for use in driving turbines, heating, sterilization, or other processes.
Safety features like safety valves control pressure to prevent hazards like over-pressurization.
Components & Function
Heat source (electric heater, gas burner, etc.) that transfers energy to the water.
Water reservoir where water is stored.
Heating tubes or coils that efficiently transfer heat into the water.
Steam outlet for directing steam to end-use applications.
Safety valves and control panels to monitor and regulate temperature, pressure, and operation.
Usage
Used in laboratories for sterilization, heating, and experiments requiring steam.
Industrial applications include power plants, chemical process industries, and heating systems.
Steam generators function similarly to boilers but vary in size and complexity depending on specific use cases.
This device is essential for producing steam consistently and safely for a wide range of technical and scientific purposes.Here is a summary of the requested items with primary images and descriptions:
Spherometer (50mm): A precision instrument for measuring the radius of curvature of spherical surfaces in optics and physics labs.
Spirit Lamp Aluminium with wick and lid: Aluminum body spirit lamp with wick and removable lid for controlled flame heating in labs.
Spirit Lamp Glass Hexagonal type: Glass hexagonal body spirit lamp with wick and lid, used for safe heating and sterilization.
Spirit Lamp Glass Round type: Glass round body spirit lamp with wick and lid, popular for low-heat laboratory tasks.
Spring Slinky 50mm dia by 75mm long & 75mm dia by 100mm long: Metal coiled springs toy demonstrating wave motion and oscillations.
Spring, Nuffield with Cross Type Pointer: Helical spring with cross-shaped metal pointer for precise displacement measurement in physics experiments.
Spring, Nuffield with Pointer: Similar to above, has a metal pointer to indicate extension or compression.
Spring, Nuffield without Pointer: Basic quality helical spring for elasticity experiments, no pointer attached.
Spiral Flexible spring 2“, 3”, 4“, 9” long: Compact metallic helical springs, flexible and used in various mechanical and industrial applications.
Steam Generator: Device that converts water into steam by heating it, used in labs and industries for steam production, sterilization, and heating.
