Description

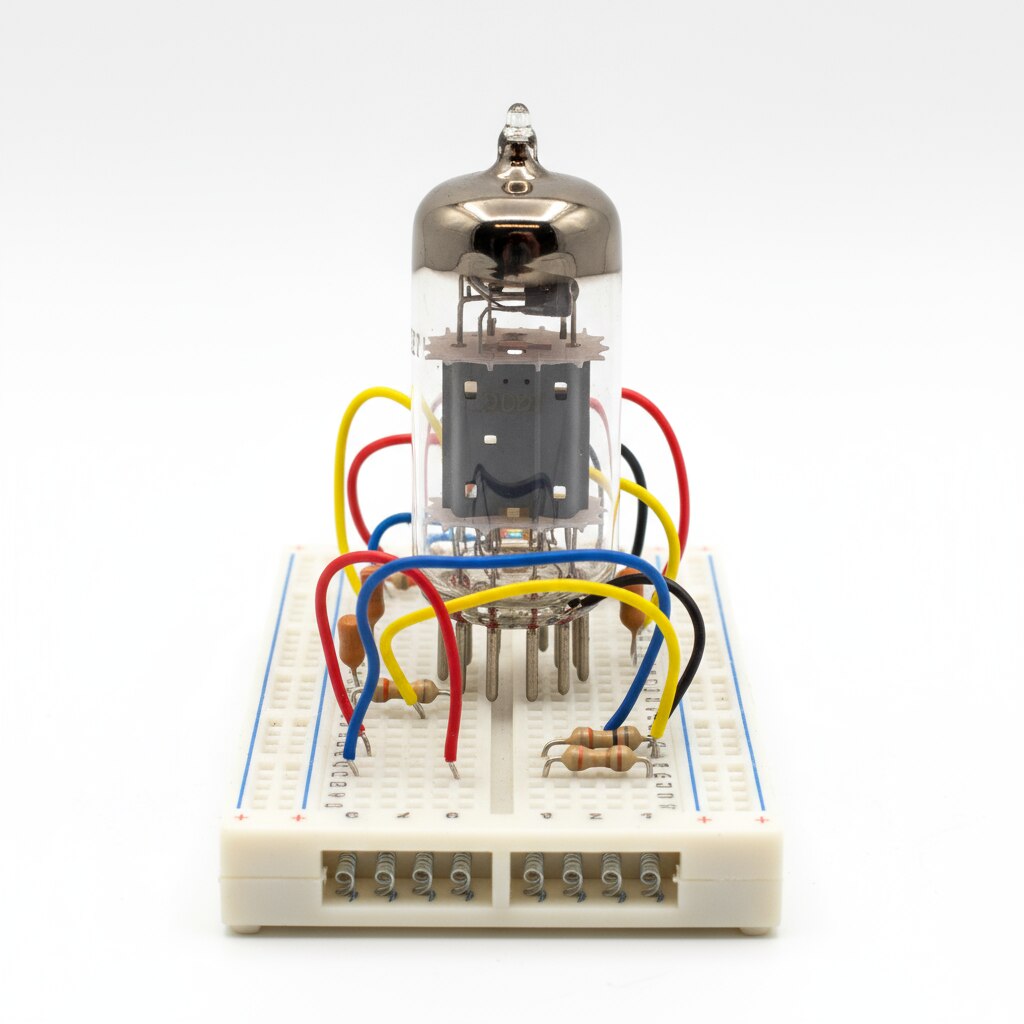

The Thyratron Valve (2D21) on Board is a miniature gas-filled tube used as a high-power electrical switch and controlled rectifier. It operates by ionizing the gas inside the envelope to create a plasma that conducts electricity between the anode and cathode, controlled by the grid voltage.
Key Features
Construction: Four-electrode thyratron with a gas-filled envelope, typically containing inert gases like argon or mercury vapor, housed in a compact glass or ceramic package.
Heater Voltage: Operates with a heater voltage around 6.3V, responsible for heating the cathode to emit electrons.
Switching Capability: Capable of switching high currents and voltages rapidly, making it suitable for radar, pulse circuits, and power control.
Control Characteristics: The device remains non-conductive until the control grid voltage triggers ionization, allowing precise control over conduction.
Ionization Potential: Used in experiments and practical applications to study ionization potential characteristics of gases like mercury.
Recovery Time: The tube's conduction is maintained as long as an anode current flows; it turns off only when the current is interrupted for a short period, limiting frequency of operation to a few kHz.
Applications: Used in switched-mode power supplies, pulse generation circuits, radar transmitters, high-voltage rectifiers, and experimental physics apparatus.
Operational Principle
The thyratron works as a controlled switch based on gas ionization inside the tube.
It effectively replaces mechanical relays in high-voltage, high-current environments with faster and reliable switching.
The control grid modulates the point at which conduction begins by influencing electron flow and gas ionization between cathode and anode.
This 2D21 thyratron valve on board is an essential component in high-power electronic switching applications and experimental setups, providing fast, reliable, and controllable conduction capabilities.
