Description

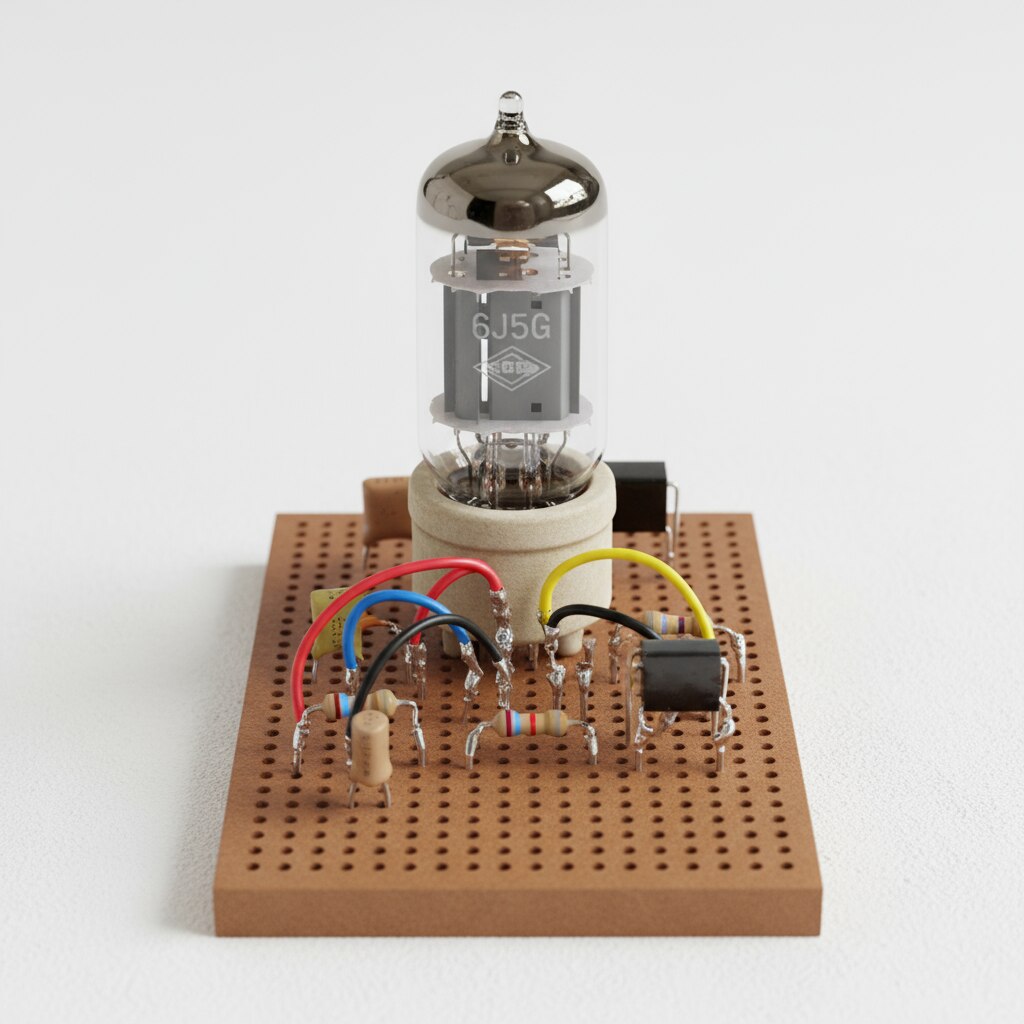

The Triode Valve (6J5/6C5) on Board is a classic vacuum tube used mainly for amplification and oscillator functions in audio and radio-frequency applications. It features an octal base and indirect heater, widely regarded for its stable performance and versatility.
Key Features
Type: Medium-mu triode with a relatively high transconductance, well-suited for resistance-coupled audio frequency amplification.
Heater: Indirectly heated with a filament voltage of 6.3V and current of around 0.3A, allowing efficient heating and less noise.
Maximum Plate Voltage: About 300V, with a maximum plate dissipation of 2.5W, enabling it to operate reliably under moderate power conditions.
Size: Compact octal base valve roughly 25mm diameter and 50mm in height, making it suitable for easy mounting on boards and versatile use in electronic devices.
Applications: Commonly used as audio preamplifiers, RF amplifiers, oscillators, and in early radio receivers due to its good linearity and amplification factor.
Equivalent Models: The 6J5 often replaces the 6C5 and VT65; multiple versions exist with metal and glass casings.
Electrical Characteristics: Medium amplification factor (~20), plate resistance (~6.7k ohms), and transconductance (~3mS), offering a balanced combination suitable for various preamplification tasks.
Usage Notes
Known for warm, clean audio amplification with classic tube sound characteristics.
Often preferred in vintage audio equipment restoration, DIY amplifiers, and experimental circuits.
This triode valve on board is an essential component for enthusiasts and professionals involved in vintage electronics, audio amplification, and radio-frequency applications, combining historical significance with reliable performance.
