Description

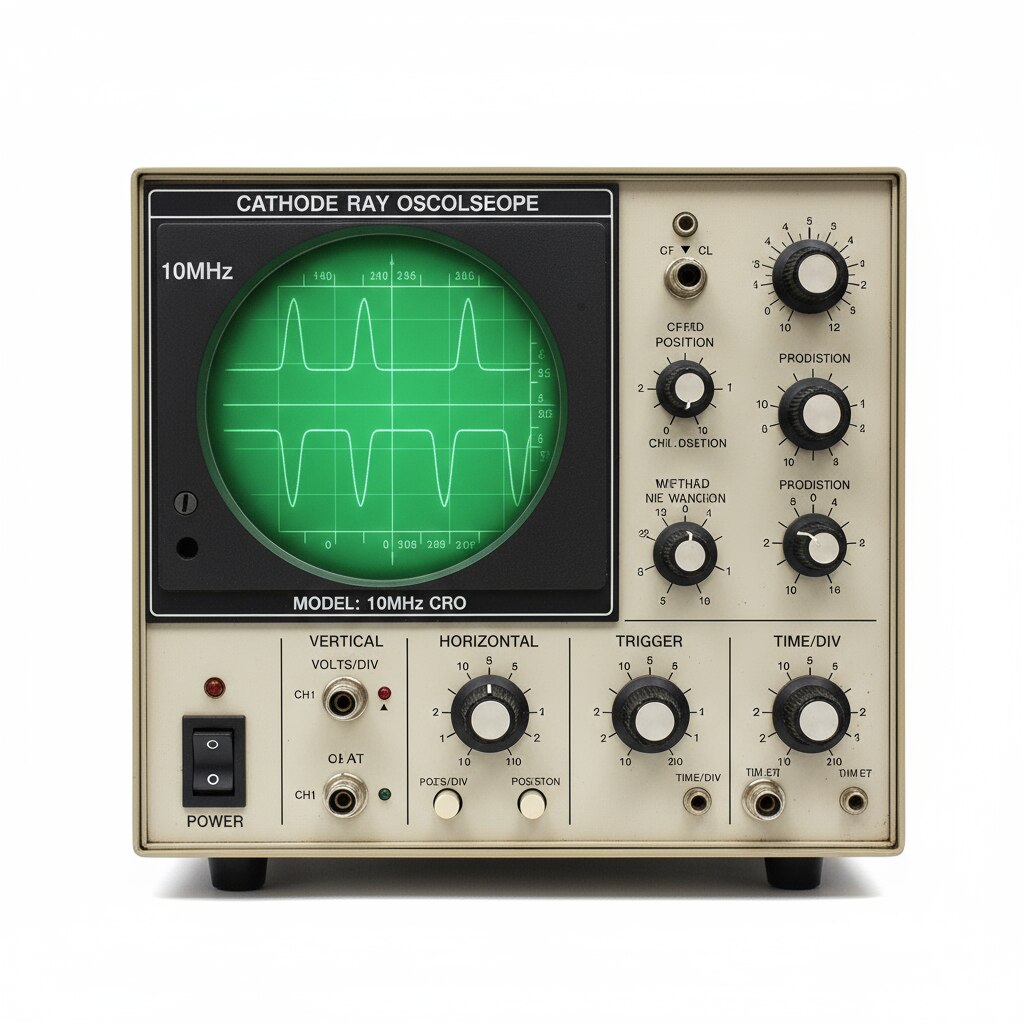

The Cathode Ray Oscilloscope (CRO) 10MHz is a reliable analog electronic instrument designed for accurately observing and analyzing electrical signal waveforms in laboratory and industrial settings.
Key Features
Bandwidth of DC to 10MHz (3db), ideal for various frequency measurements.
Vertical sensitivity ranging from 10mV/div to 10V/div with ±5% accuracy, allowing precise observation of both small and large signals.
Sweep rate adjustable from 0.1μs/div to 0.1s/div for capturing fast or slow-changing signals.
Trig source options include Internal, External, and TV, with maximum external trigger input up to 400V (DC + AC peak).
Multiple trig modes: Normal, Auto, TV, and Lock for flexible measurement control.
X-Y deflection ranging from 0.2V/div to 0.5V/div enables comparative waveform analysis.
High trigger sensitivity and easy operation make it suitable for both educational and professional use.
Powered by AC 200V ±10%, and typically includes standard accessories such as power cord, oscilloscope probe (usually 20MHz), and user manual.
Applications
Visual display of electrical waveforms for scientific experiments, troubleshooting, and electronics development.
Accurate measurement of voltage, time intervals, frequency, and phase difference in signals.
Commonly used in physics labs, educational institutions, electronics workshops, and quality control environments.
Dimensions & Build
Compact design with typical dimensions around 190 x 140 x 270mm for convenient setup in laboratory spaces.
Durable build quality supports routine and extended use in demanding environments.
Additional Advantages
Wide frequency range and low distortion ensure clear signal visualization.
Immediate availability of signals in their initial electrical forms, enabling fast diagnostics.
High performance-to-price ratio, making it a cost-effective choice for academic and industrial applications.
This CRO 10MHz model is a dependable tool for professionals, students, and educators seeking an efficient solution for signal analysis in laboratory and workshop applications.
