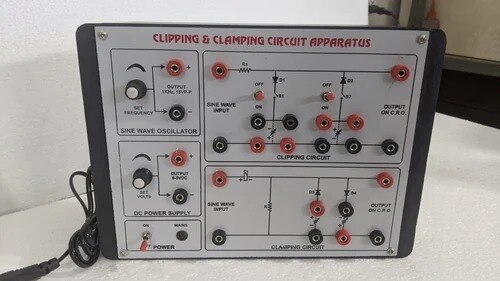

Clamping Circuit Apparatus.

Description

Circuit Design: The apparatus features diode-capacitor-resistor networks configured to demonstrate positive and negative clamping operations.

Function: Clamping circuits are designed to “clamp” the input waveform to a specified reference voltage, effectively shifting the entire signal vertically on the voltage axis. This does not change the waveform shape, but repositions its baseline.

Operation: With a connected signal source (function generator), the user observes how the output waveform is shifted either upwards (positive clamping) or downwards (negative clamping) depending on the circuit configuration.

Features: The device offers robust terminals for signal input, test points for waveform measurement, and arrangements for quick selection of clamping direction and reference levels. Output is observed on an oscilloscope for clear visualization.

This apparatus is widely used in electronics laboratories to demonstrate DC restoration, baseline adjustment, and signal level shifting techniques essential in analog and communication circuits.The Clamping Circuit Apparatus is a laboratory device designed to demonstrate how clamping circuits modify the DC level of an AC input signal without changing its peak-to-peak amplitude.
