Description

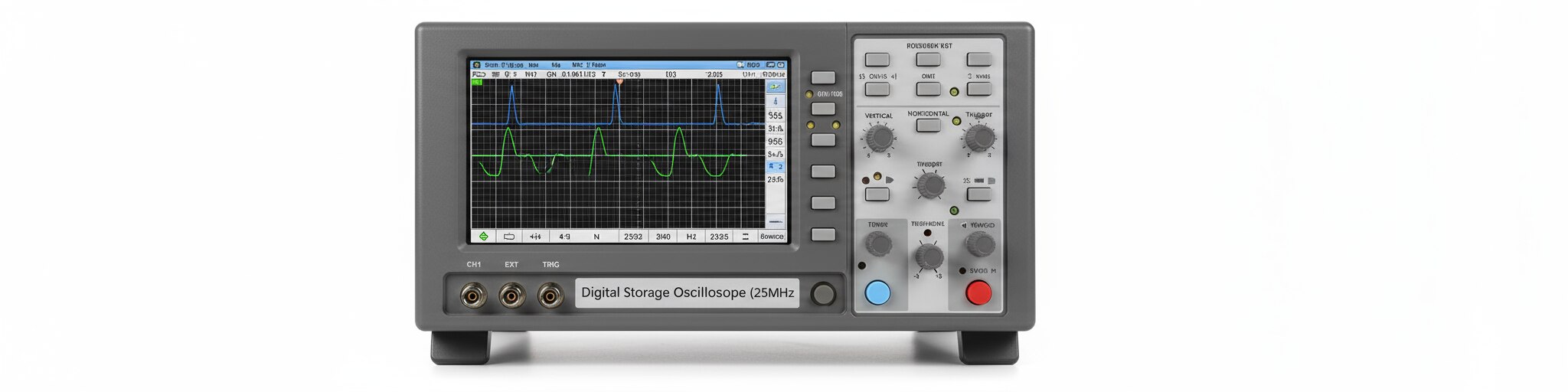

The Digital Storage Oscilloscope (DSO) 25MHz is a modern electronic measurement instrument designed for precise capture, storage, and analysis of electrical signal waveforms with digital accuracy and ease of use.
Key Features
Bandwidth: 25MHz bandwidth suitable for a wide range of analog and digital signal measurements.
Sampling Rate: Real-time sample rate of up to 400MS/s with equivalent sampling rates as high as 10Gsps, ensuring detailed signal analysis and reconstruction.
Display: Typically equipped with a 5.6-inch TFT LCD color display offering clear waveform visualization and multi-color schemes for enhanced signal interpretation.
Channels: Dual-channel input capability to analyze two signals simultaneously, enhancing comparison and diagnostic flexibility.
Vertical Resolution: 8-bit A/D resolution providing accurate digital representation of analog signals.
Triggering: Edge, Pulse Width, Video trigger modes with features like auto, normal, and single trigger for versatile and stable waveform capture.
Memory Depth: Capable of storing thousands of waveform points (e.g., 2.4Mpts for single channel), allowing detailed waveform recording and playback.
Mathematical Functions: Includes waveform math operations such as add, subtract, multiply, divide, and fast Fourier transform (FFT) for spectral analysis.
Connectivity: USB host port for waveform data storage and firmware upgrades, plus remote control via USB or RS232C.
Additional Functions: Auto measurements of various parameters like Vpp, frequency, rise time, and phase difference, plus digital filtering and waveform recording options.
Compact design with typical dimensions around 303 x 145 x 150 mm and weight approximately 4.5 kg for portable lab or field use.
Applications
Used widely in electronic labs, engineering education, and electronic circuit development for precise waveform capture and analysis.
Useful for troubleshooting complex electrical signals in repair and testing environments.
Supports a variety of triggering and measurement modes suited for analog and digital electronics.
This DSO 25MHz model offers a robust feature set and advanced digital capabilities, making it suitable for detailed waveform analysis in both professional and educational contexts.
