The query relates to electronics, specifically a Cathode Ray Oscilloscope (CRO) with a 10 MHz bandwidth. A Cathode Ray Oscilloscope is an essential instrument in electronics used to visualize electrical signals, measure their amplitude, and analyze their frequency characteristics. A 10 MHz CRO can accurately display signals with frequencies up to 10 MHz, making it suitable for educational labs and general electronic testing.

Overview of 10 MHz CRO

A 10 MHz Cathode Ray Oscilloscope displays voltage vs. time for signals up to 10 MHz, offering real-time waveform analysis and measurements. It is used for observing signal waveforms, identifying distortion, and checking electronic circuit functionality.

Key Features

Bandwidth: 10 MHz (maximum frequency for accurate display)

Voltage Measurement: Allows direct visualization of signal voltages

Time Base: Adjustable for different signal periods

Applications: Used in troubleshooting, signal analysis, and educational demonstrations

Example Use Cases

Testing analog circuits and digital signals within 10 MHz

Measuring time intervals and voltage peaks for electronics labs

Observing periodic waveforms and pulse shapes in circuit design

This instrument is fundamental for electronics diagnostics and is a core tool for students and professionals working with electronic systems.

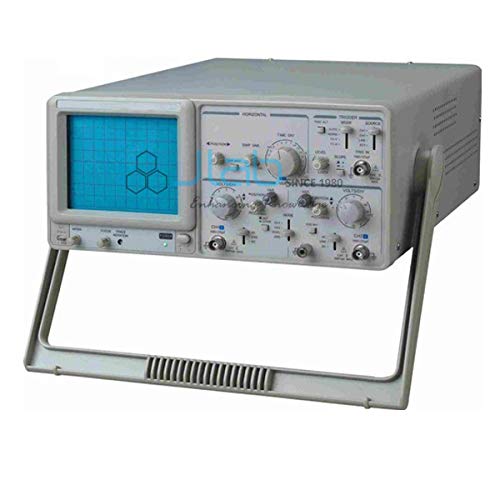

Cathode Ray Oscilloscope (CRO) 10MHZ
