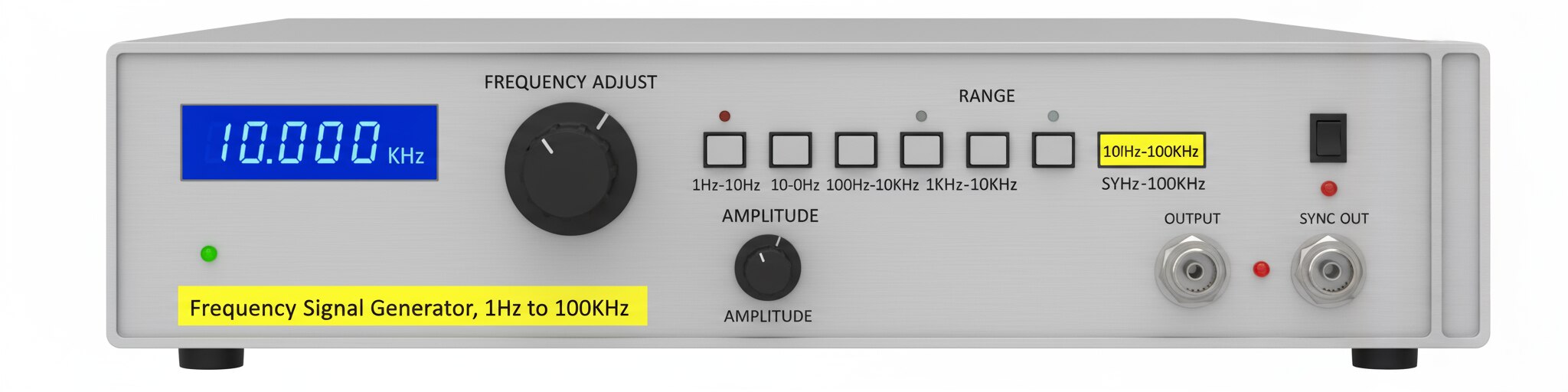

Frequency Signal Generator, 1Hz to 100KHz

The Frequency Signal Generator, operating from 1Hz to 100kHz, is a versatile electronic device used to produce different types of electrical waveforms across a wide range of frequencies.

Key Features

Frequency Range: 1Hz to 100kHz, covering audio and low-frequency signal generation needs.

Output Waveforms: Generates sine, square, triangular, ramp, and pulse waveforms suitable for diverse testing and research applications.

Output Amplitude: Adjustable amplitude generally from 0 to 20Vp-p or as specified, allowing flexibility in signal testing.

Distortion: Low waveform distortion typically less than 1% within the frequency range, ensuring signal fidelity.

Output Impedance: Usually around 50 ohms, compatible with standard measurement and test equipment.

Control: Fine and coarse frequency adjustment knobs for precise frequency selection.

Power Supply: Operates on standard AC mains power (220V AC), with specified frequency response and accuracy across the range.

Compact and robust design suitable for lab bench use and fieldwork.

Applications

Provides accurate frequency signals for calibration, testing, and alignment of electronic devices and circuits.

Commonly used in audio testing, communication equipment development, and research laboratories.

Ideal for generating various signal types for experimentation and learning in educational settings.

This frequency signal generator offers reliable waveform generation with high accuracy and flexibility, making it an essential tool for engineers, technicians, and educators working on electronic testing and development.
