Description

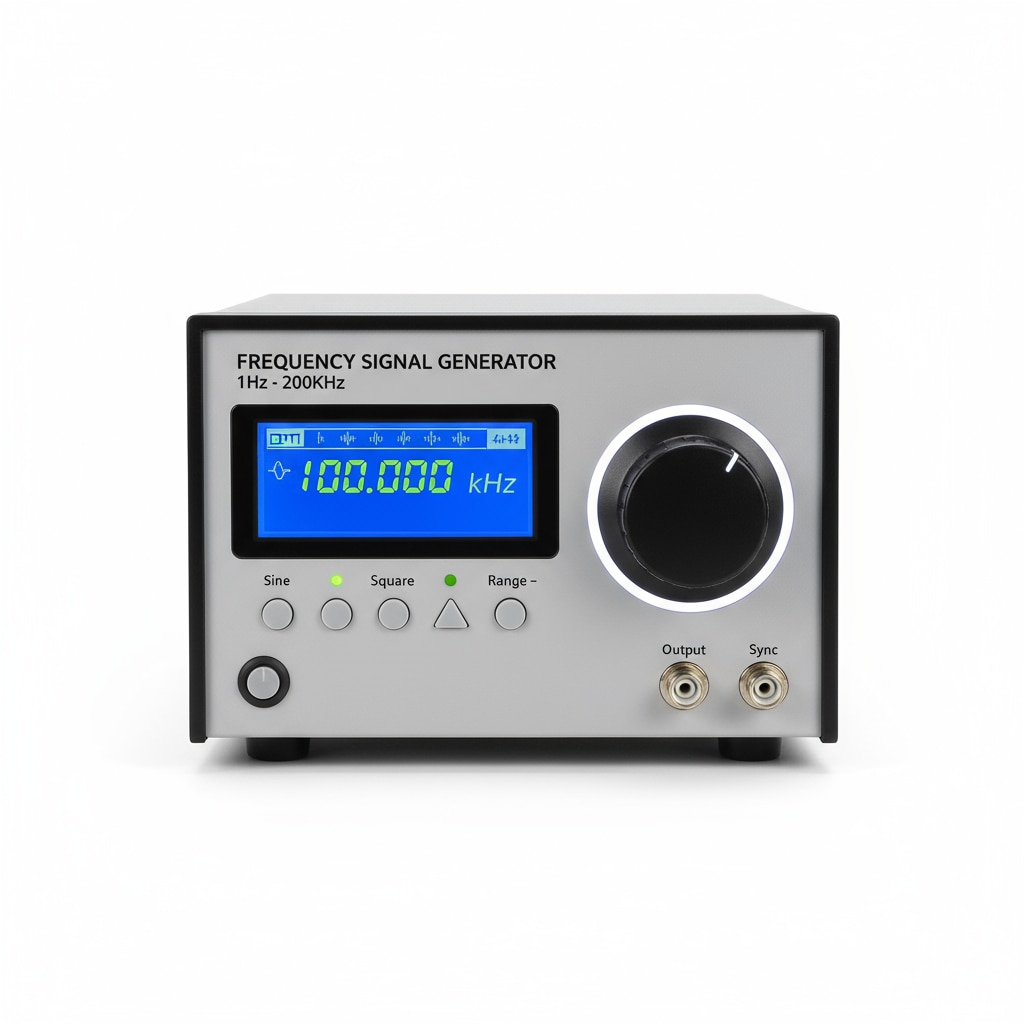

The Frequency Signal Generator, with a range from 1Hz to 200KHz, is a reliable and versatile laboratory instrument used to generate various types of waveforms such as sine, square, and triangular waves within a wide frequency spectrum for electronic testing and research.
Key Features
Frequency Range: 1Hz to 200KHz, adjustable in multiple steps or decade ranges for precise frequency selection.
Waveforms: Capable of producing sine, square, and triangular outputs, often selectable via a waveform selector switch.
Output Amplitude: Typically adjustable up to around 20Vp-p, suitable for driving a variety of circuits and measurement devices.
Frequency Accuracy: Around ±3% on all frequency ranges, ensuring reliable signal generation.
Output Impedance: Approximately 50 to 60 ohms, compatible with standard test equipment.
Distortion: Low harmonic distortion ensuring clean waveform output, generally below -40dB for sine waves within the frequency range.
Display: Some models include LCD frequency display for easy frequency setting confirmation.
Controls: Coarse and fine frequency adjustment knobs and waveform selectors for ease of operation.
Power Supply: Standard AC mains operation (220V/110V) with short circuit and overload protection in some models.
Compact design with robust construction suited for bench-top and field environments.
Applications
Essential tool for calibration, testing, and troubleshooting in electronics labs, audio engineering, and communication equipment testing.
Widely used in educational labs, research institutes, and production lines to generate test signals and waveforms for experiments and device verification.
Suitable for audio frequency response testing, amplifier analysis, filter characterization, and component testing.
This frequency signal generator delivers accurate, stable, and versatile waveform generation, making it a dependable instrument for engineers, technicians, and educators working in various electronics fields.
