Half Wave Rectifier Apparatus

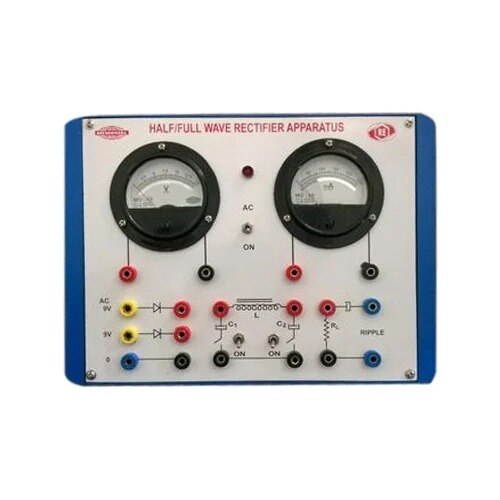

The Half Wave Rectifier Apparatus is a laboratory device designed to demonstrate the principle and operation of half-wave rectification, converting alternating current (AC) into pulsating direct current (DC) using a single diode.

Description

Circuit Design: The apparatus consists of a simple circuit with a diode, an AC input source (such as a transformer or signal generator), and output terminals for connecting a load or measurement device.

Function: During half-wave rectification, the diode conducts only during one half (either positive or negative) of the AC cycle, blocking current during the other half. This results in a DC output with significant ripple, illustrating the conversion of AC to DC using minimal components.

Operation: The user applies an AC input and observes the output waveform at the measurement terminals, usually with a voltmeter or oscilloscope, to visualize the clipped nature of the rectified signal.

Features: Rugged mounting and robust terminal posts ensure safe experiments. Test points allow easy measurement and waveform analysis.
