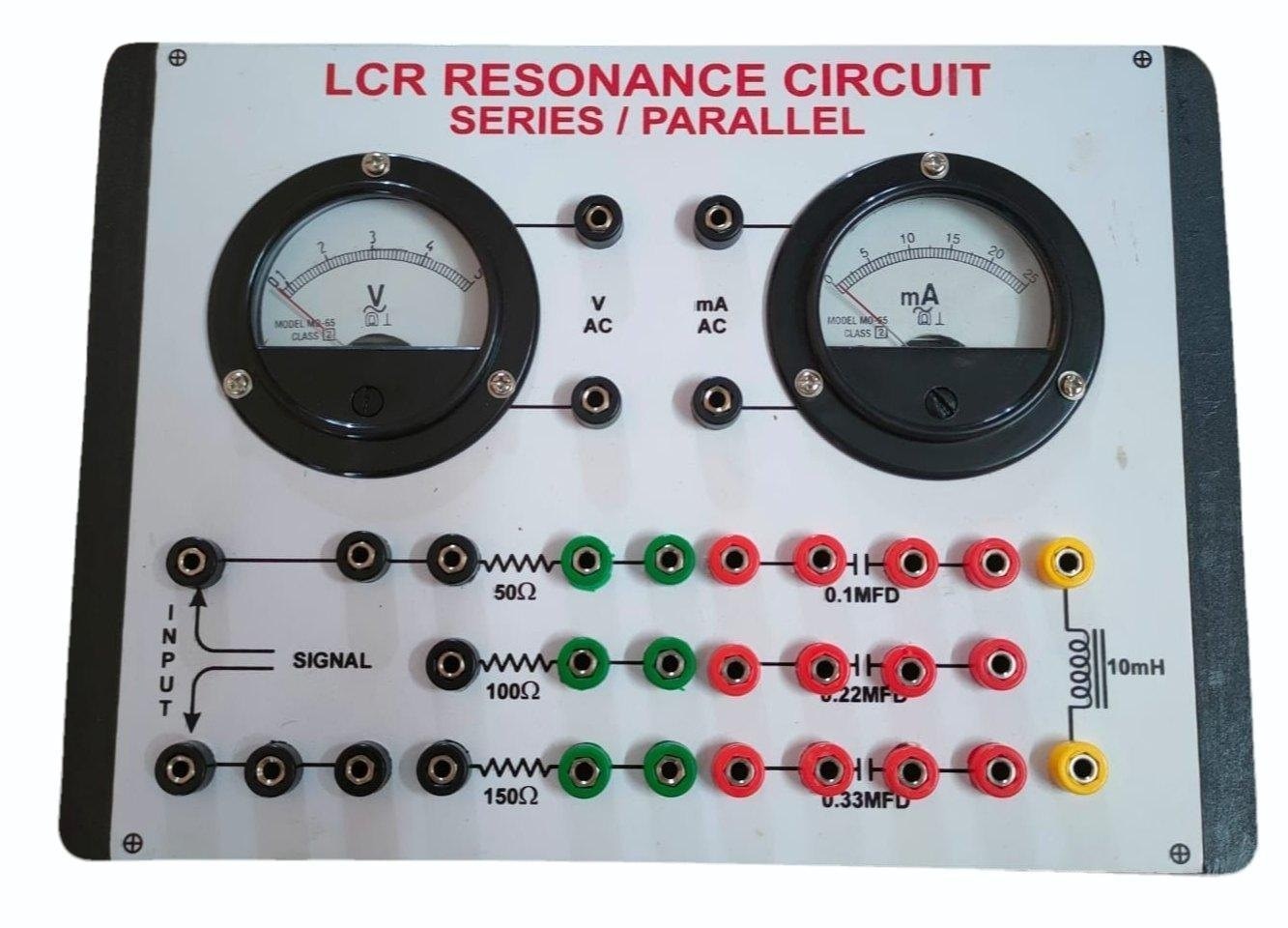

LCR Resonance Circuit with built in Sine wave Oscillator

The LCR Resonance Circuit with built-in Sine Wave Oscillator is an integrated laboratory apparatus designed for the thorough study of resonance in AC circuits, with the added convenience of an internal variable-frequency AC signal source.

Description

Integrated Design: This apparatus combines an LCR resonance circuit (incorporating a selectable inductor, capacitor, and resistor) with a built-in sine wave oscillator, eliminating the need for external signal generators.

Circuit Configuration: Provides terminals or switching arrangements to connect the inductor (L), capacitor (C), and resistor (R) in series or parallel formations within the housing.

Sine Wave Oscillator: The internal oscillator allows for frequency adjustment over a broad range, supplying a stable sine wave for precise resonance measurements.

Measurement and Display: Includes voltage and current meters (digital or analog) for monitoring circuit responses at different frequencies. Some models offer direct frequency and resonance indicators.

Operation: Users vary the oscillator frequency and observe changes in voltage or current, identifying the resonant frequency where the current peaks (in series circuits) or voltage across elements maximizes (in parallel circuits).

This all-in-one apparatus is ideal for laboratory instruction, providing a hands-on demonstration of resonance, impedance, quality factor, and frequency response in LCR circuits, making experimental setup faster and more reliable.
