Photo Cell Characteristics Apparatus with wooden Plank & Base

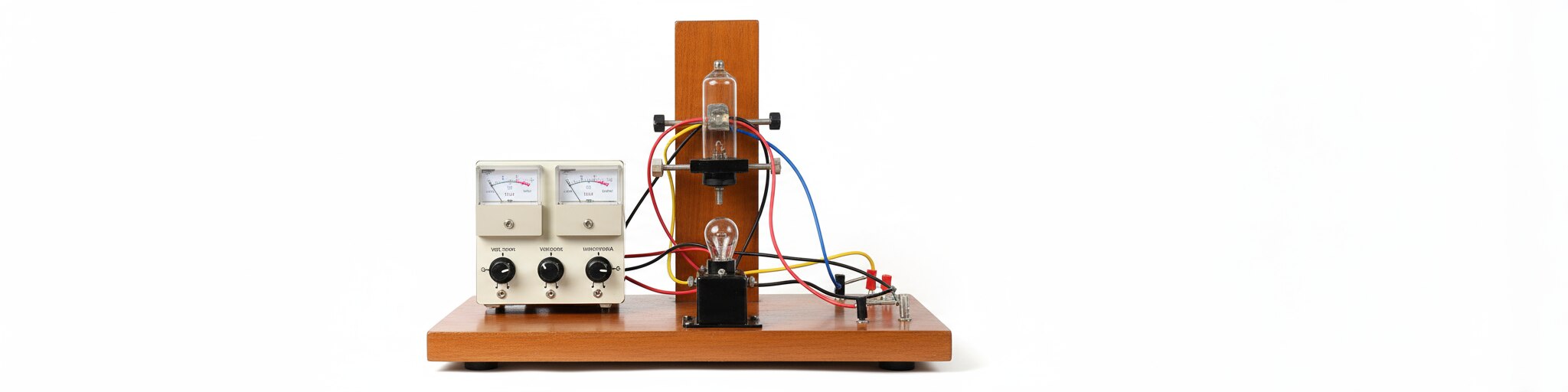

The Photo Cell Characteristics Apparatus with a wooden plank and base is a practical laboratory device designed for studying the properties and behavior of photoelectric cells. It features a photo cell securely mounted on a wooden plank base for stability, along with electrical terminals for connecting to measuring instruments.

Key Features

The wooden base offers a robust platform for mounting the photo cell and related circuit components.

Typically equipped with a regulated light source like a 60W lamp, or equivalent, to vary the intensity of light.

Accessories include micro ammeters and voltmeters to measure current and voltage generated by the photo cell under varying light conditions.

May include variable resistors to adjust circuit parameters during experiments.

Purpose and Usage

Used primarily for demonstrating the photoelectric effect and measuring characteristics such as photocurrent vs. light intensity.

Useful in physics labs for hands-on experiments on photoconductivity and photo-voltaic cell functionality.

Enables plotting of characteristic curves for voltage and current output related to incident light power, helping to validate theoretical principles.

Overall, this apparatus with a wooden plank and base ensures stable, accurate, and repeatable photo cell experiments in an educational or research environment.
