Photo Cell Characteristics Apparatus without optical Bench

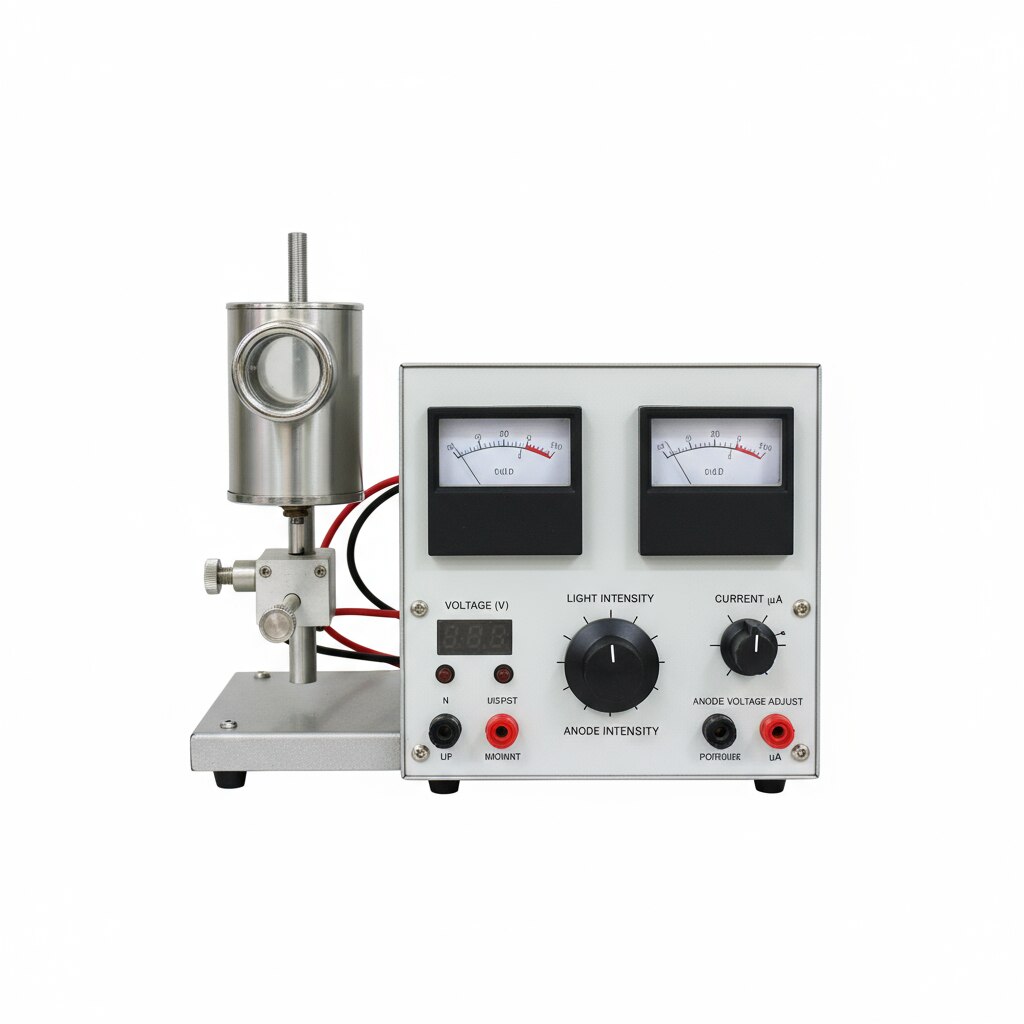

The Photo Cell Characteristics Apparatus without optical bench is a laboratory setup designed to explore the behavior of photoelectric cells, particularly selenium photo cells, under different lighting conditions. It consists of a photo cell unit mounted on a box, digital or analog meters for measuring current and voltage output, and a lamp as the light source for controlled experiments.

Key Features

Selenium photo cell mounted inside a metal or wooden enclosure with terminals for easy electrical connections.

A light source such as a 60 to 100W lamp with adjustable distance for varying light intensity.

Measurement instruments include micro ammeters and millivoltmeters to read output signals from the photo cell accurately.

Variable resistors or controls to regulate circuit parameters during experiments.

Compact apparatus without an optical bench, making it space-efficient and portable.

Purpose and Usage

Designed to verify principles like the inverse square law of light intensity and photoelectric effect characteristics.

Used in educational physics labs for studying photo cell responses, light intensity relationships, and electrical output.

Suitable for experiments on photo-emissive, photo-voltaic, and photo-conductive cell behaviors.

Helps in plotting characteristic curves of photo cell voltage and current versus light intensity.

This apparatus provides a practical tool for hands-on learning and experimentation with photoelectric phenomena and photodetector technologies without requiring extensive optical setups.
