Study of Voltage Regulation using IC 317

INR 6552
In stockcod available
Phone Number

08048036175

Please keep 0 before dialling the number.

Email Address mnc.naveen@gmail.com

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Address Correspondence Address: Shop No. 20, 2nd Floor, Srirama Tower, Bogulkunta, Telangana

Hyderabad, India, 500001

Description

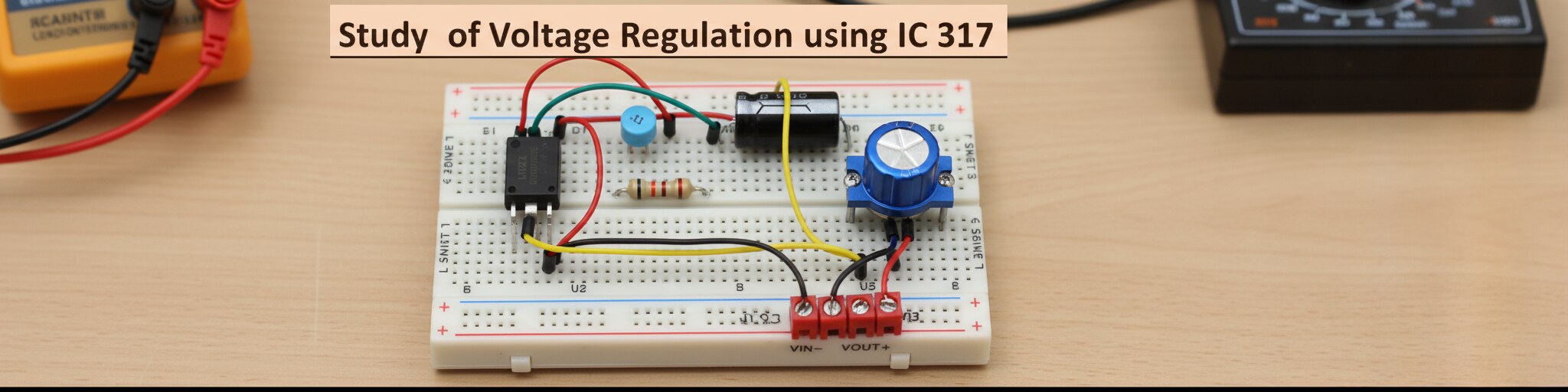

Circuit Design: The apparatus includes an LM317 IC with associated components: a variable resistor (potentiometer) for adjusting output voltage, input and output capacitor filtering, and connection terminals for power supply and load. Function: The LM317 regulates the output voltage efficiently by maintaining steady output regardless of fluctuations in input voltage or load current, within its specified limits. The output voltage is adjusted between 1.25V and 37V (depending on circuit configuration) by varying the reference resistor network. Operation: Users provide a variable DC input and connect measurement devices (voltmeters, ammeters) to observe and record output voltage stability under changing input voltage and load conditions. The circuit demonstrates the regulator’s load and line regulation capabilities, as well as its current limiting and thermal protection features. Features: Sturdy mounting, easy-access terminals, and clearly marked adjustment controls make experimentation straightforward. Some setups may also include switches for rapid load connection or output measurement selection. This apparatus is essential for electronics labs, supporting hands-on exploration of voltage regulation principles, power management, and the application of integrated regulators in electronic circuit design.The Study of Voltage Regulation using IC 317 apparatus is a laboratory setup designed to demonstrate the principles and practical application of voltage regulation with the LM317 integrated circuit, which is an adjustable voltage regulator. Description The apparatus consists of an LM317 IC mounted with necessary support components, including a variable resistor (potentiometer) for output voltage adjustment, input/output filtering capacitors, and robust connection terminals for the power supply and measurement instruments. By varying the potentiometer, users can set the output voltage over a range typically from 1.25V to 37V, depending on the input and component configuration. Measurement points allow the user to study voltage regulation across different loads and input voltages, examining the IC’s performance for line and load regulation, stability, and overall efficiency. This setup is fundamental for hands-on exploration of modern voltage regulation methods and demonstrates how integrated circuits like the LM317 can provide reliable, adjustable DC outputs for electronic applications.
