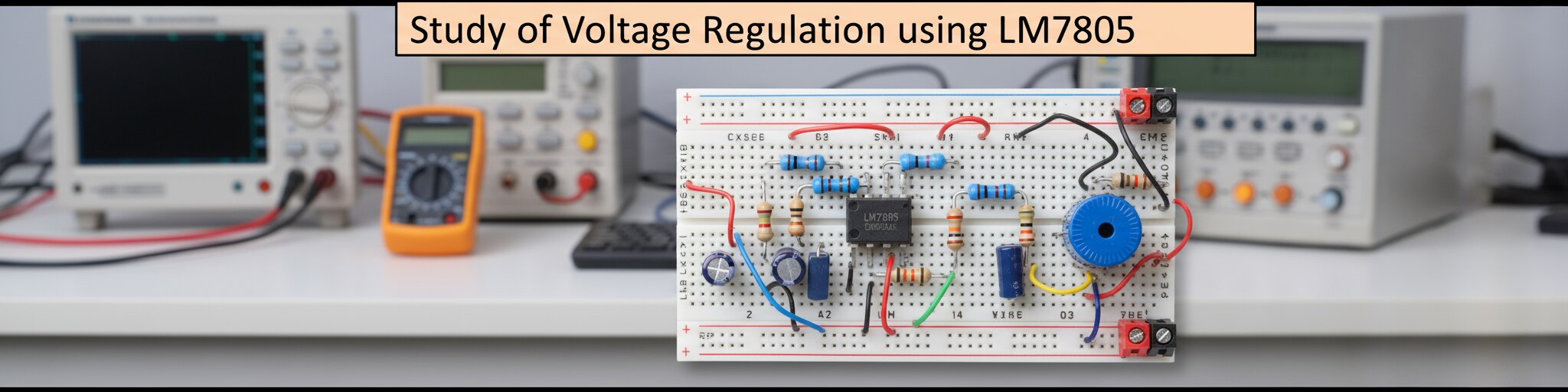

Study of Voltage Regulation using

The setup typically includes a voltage regulator IC (such as LM317 or 7805), input/output terminals, filtering capacitors, a variable resistor (potentiometer), and connection points for measurement instruments.

The input voltage is supplied to the IC, and users can adjust circuit parameters (like load or reference resistance) to observe changes in the regulated output.

Measurement devices (voltmeters, ammeters) are used to monitor input and output, allowing verification of line and load regulation efficiencies.

This experiment helps illustrate key features like adjustable output, current limiting, and thermal protection.

This apparatus is fundamental for hands-on exploration of voltage regulation concepts, power management, and practical use of integrated regulators in electronic systems.
