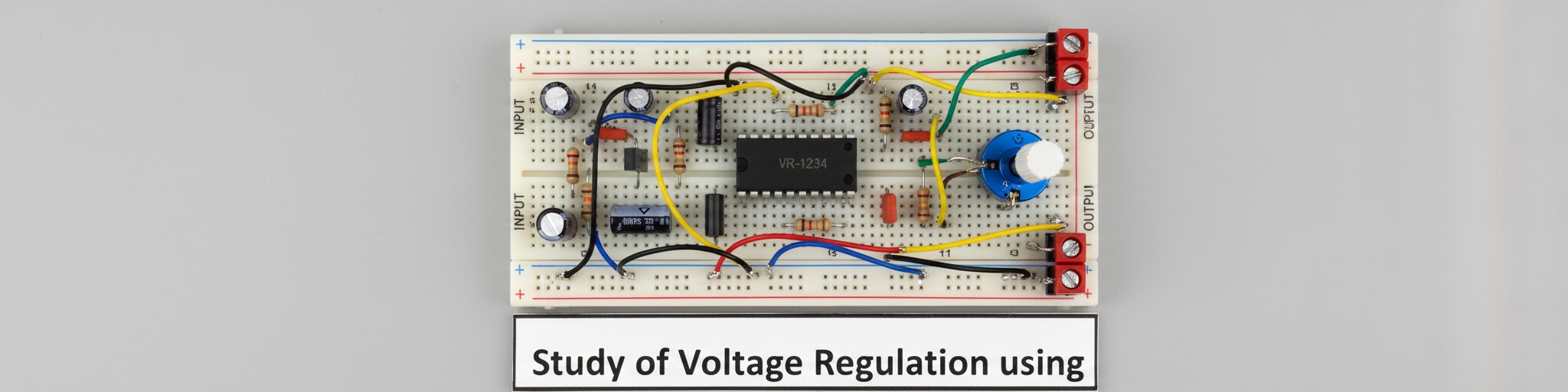

Study of Voltage Regulation using

A voltage regulation study apparatus using an integrated circuit provides a practical laboratory demonstration of maintaining constant output voltage under varying input and load conditions.

Description

The setup centers around a voltage regulator IC, with input and output terminals, filter capacitors, and an adjustable resistor for setting the output.

Input voltage is supplied to the IC, and users adjust circuit elements to observe the regulated output under different loads.

Measurement points allow students to check voltage stability, line regulation, and load regulation.

The apparatus demonstrates the IC’s ability to provide reliable DC power despite changes in supply or output demand.

This setup is useful for training in electronic power regulation, demonstrating functions such as output adjustment, current limiting, and protection features in real circuits.
