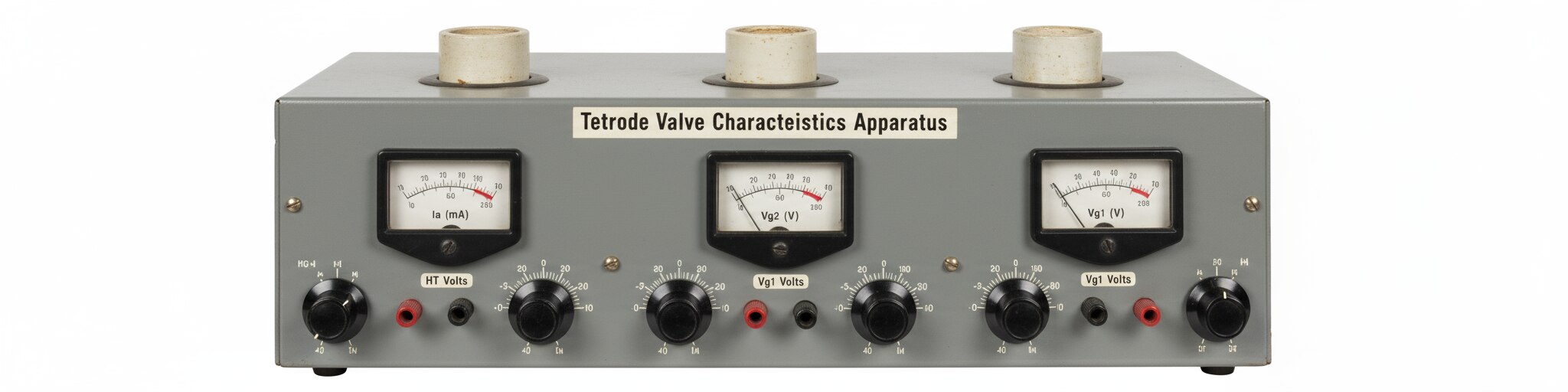

Tetrode Valve Characteristics Apparatus

A Tetrode Valve Characteristics Apparatus is a laboratory equipment setup designed to examine the electrical behavior and characteristic curves of tetrode vacuum tubes. It features tube sockets for mounting tetrodes, variable DC power supplies for heating the cathode and applying anode and screen grid voltages, and measuring instruments such as voltmeters and ammeters to monitor tube currents and voltages.

Key Components and Functions

Tetrode Socket: Holds the tetrode valve securely for testing.

Heater Power Supply: Provides voltage for heating the cathode to enable thermionic emission.

Adjustable Anode Voltage Supply: Supplies high voltage to the anode to examine conduction behavior.

Screen Grid Voltage Supply: Regulates voltage on the screen grid to influence electron flow and reduce anode-grid capacitance.

Measurement Instruments: Analog or digital meters help plot curves of anode current versus voltage at different grid voltages.

Control Panel: Enables setting and varying different voltages in a controlled manner for detailed study.

Purpose and Usage

Demonstrates the distinctive operation of a tetrode compared to triode valves, particularly the screen grid's role in improving gain and stability.

Allows observation of characteristic curves showing anode current changes with varying control grid and screen grid voltages.

Provides hands-on exploration of concepts like dynatron region and voltage amplification.

Commonly used for teaching vacuum tube electronics and research in electronic component behavior.

This apparatus is essential in understanding the performance improvements introduced by the tetrode design and supports educational and practical learning in electronics.
