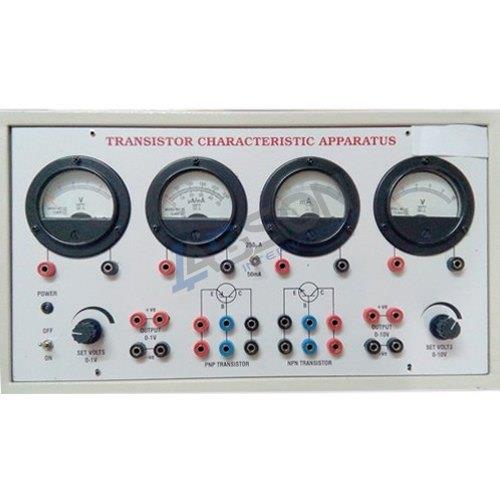

Transistor Characteristics Apparatus (CE PNP)
Description
A Transistor Characteristics Apparatus (CE PNP) is a setup used to study the characteristics of a PNP transistor in Common Emitter (CE) configuration.
Key Aspects:
Common Emitter Configuration: The emitter is common to both input and output circuits. This configuration is widely used for amplification.
PNP Transistor: A type of bipolar junction transistor with one N-type material between two P-type materials.
Characteristics Studied:
Input Characteristics: Relationship between base-emitter voltage (V<sub>BE</sub>) and base current (I<sub>B</sub>), with collector-emitter voltage (V<sub>CE</sub>) constant.
Output Characteristics: Relationship between collector current (I<sub>C</sub>) and collector-emitter voltage (V<sub>CE</sub>), with base current (I<sub>B</sub>) constant.
Purpose:
To understand the behavior of PNP transistors in CE mode.
To determine parameters like current gain (β = ΔI<sub>C</sub>/ΔI<sub>B</sub>).
Specifications
| Model No. | N-EL015 |
|---|
