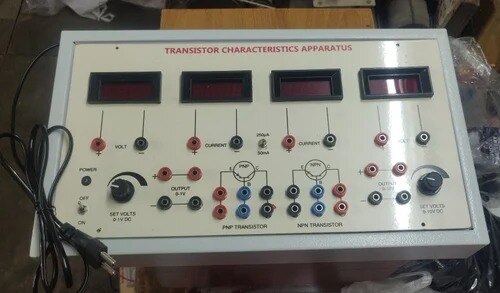

Transistor Characteristics Apparatus (CENPN)
Description
A Transistor Characteristics Apparatus (CENPN) seems to refer to a setup for studying the characteristics of an NPN transistor in Common Emitter (CE) configuration.
Key Aspects:
Common Emitter (CE) Configuration: The emitter is common to both input and output circuits. This is a popular configuration for amplification.
NPN Transistor: A type of bipolar junction transistor with two N-type materials and one P-type material.
Characteristics Studied:
Input Characteristics: Relationship between base-emitter voltage (V<sub>BE</sub>) and base current (I<sub>B</sub>), keeping collector-emitter voltage (V<sub>CE</sub>) constant.
Output Characteristics: Relationship between collector current (I<sub>C</sub>) and collector-emitter voltage (V<sub>CE</sub>), with base current (I<sub>B</sub>) constant.
Purpose:
To understand NPN transistor behavior in CE mode.
To determine parameters like current gain (β = ΔI<sub>C</sub>/ΔI<sub>B</sub>)
Specifications
| Model No. | N-EL016 |
|---|
