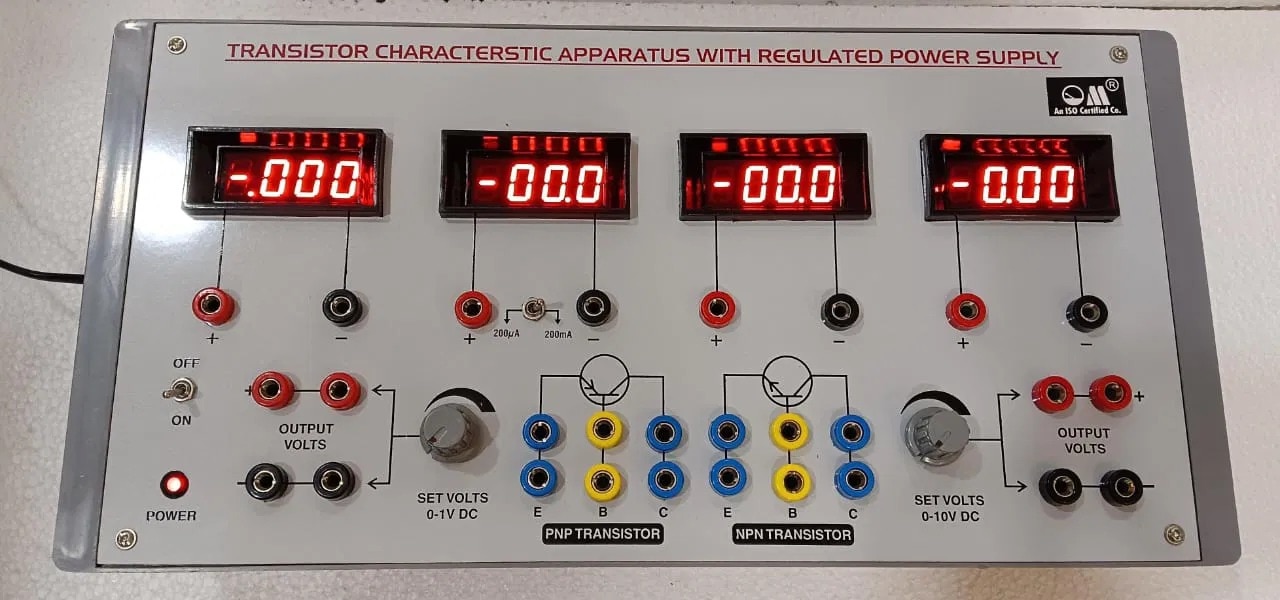

Transistor Characteristics Apparatus with Regulated Power Supply

A Transistor Characteristics Apparatus with Regulated Power Supply is a piece of laboratory equipment designed to measure and study the characteristics of transistors.

Key Features:

Regulated Power Supply: Provides stable voltages for the transistor under test, ensuring accurate measurements.

Transistor Characteristics Measurement: Allows for the measurement of input and output characteristics of transistors (like input current vs. input voltage, output current vs. output voltage).

Study of Transistor Parameters: Helps in understanding transistor behavior, like current gain (beta), input impedance, and output characteristics in different configurations (Common Emitter, Common Base, Common Collector).

Typical Use:

Educational purposes to understand transistor behavior.

Experimentation with transistor circuits.

Characterization of transistor parameters for specific applications.
