Voltage Doubler & Trippler Circuit

INR 6552
In stockcod available
Phone Number

08048036175

Please keep 0 before dialling the number.

Email Address mnc.naveen@gmail.com

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Address Correspondence Address: Shop No. 20, 2nd Floor, Srirama Tower, Bogulkunta, Telangana

Hyderabad, India, 500001

Description

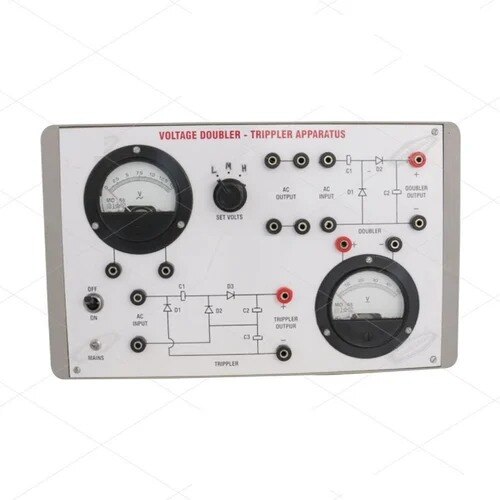

Description Principle: This apparatus operates by successively charging capacitors through diodes during different phases of an AC input cycle, effectively stacking voltages and converting AC to higher-level DC outputs beyond the input peak value. Apparatus Construction: Includes a set of diodes and capacitors arranged in classic voltage multiplier configurations. The doubler circuit uses two stages—each with a diode and capacitor—to produce an output approximately twice the peak AC input voltage. The tripler circuit extends the doubler concept with an additional diode-capacitor stage, yielding about three times the input peak voltage. Robust terminals and a clear layout enable safe connections to an AC source and measurement instruments. Operation: When powered by AC, each stage charges its capacitor in sequence, with rectifiers directing current flow such that the DC output at the end of each stage is a cumulative sum of charged voltages. Output voltage can be measured and compared to theoretical values, illustrating practical applications of voltage multiplication for electronic circuits. This apparatus is essential for experiments in rectification, AC-to-DC conversion, and power electronics, providing hands-on experience with voltage multiplier design and analysis.The Voltage Doubler & Tripler Circuit apparatus is designed for demonstrating the principles of voltage multiplication using capacitor-diode networks in laboratory experiments. Description This circuit utilizes multiple stages of diodes and capacitors to increase the peak output DC voltage derived from an AC input. For the doubler configuration, two capacitors and two diodes are arranged so the output is nearly twice the input peak voltage after rectification. For the tripler, the setup adds another stage, giving nearly three times the input peak voltage. The apparatus features rugged mounting, clear terminals, and is suitable for safe, repeatable experiments showing practical applications in power electronics for generating higher voltages from standard AC sources. This device is important for hands-on learning about voltage multipliers and is widely used in electronics education and experimentation.
