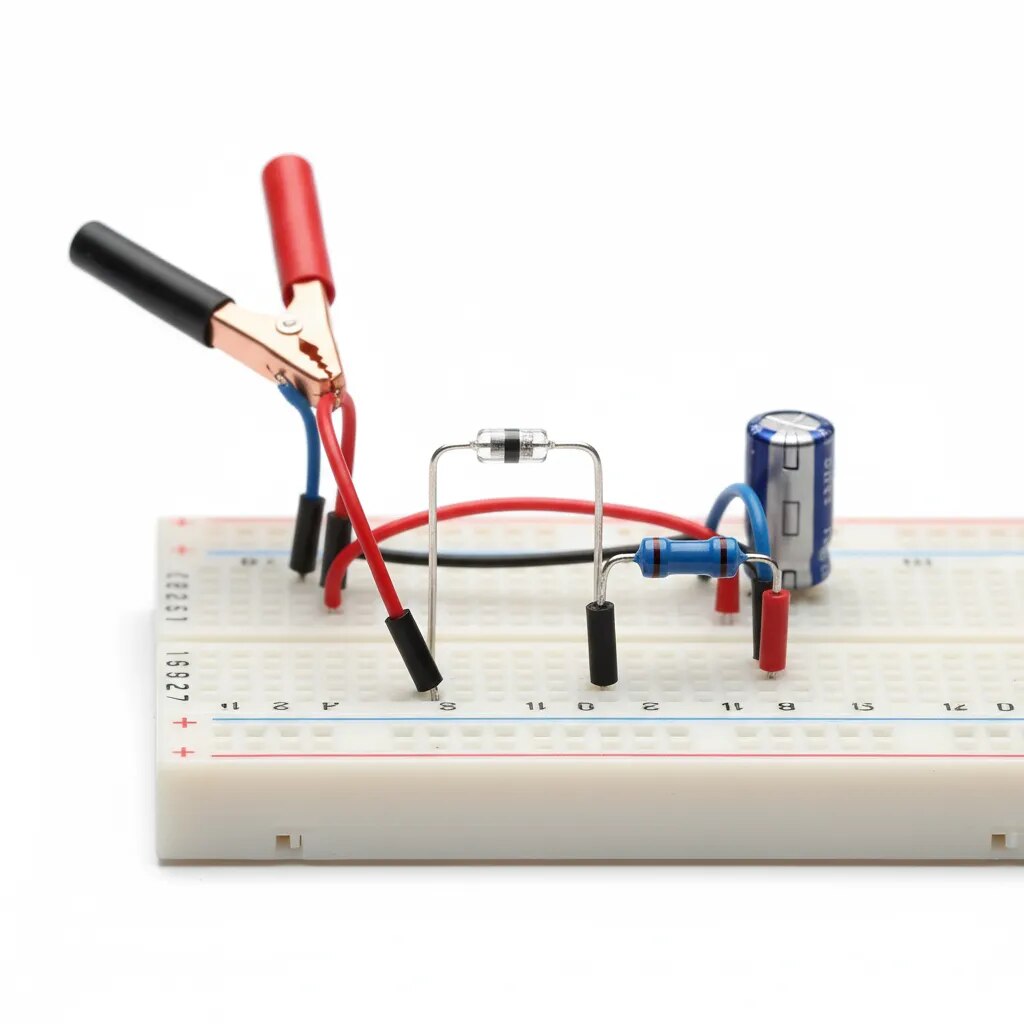

Zener Diode (8.2V or any other value) on board.

The Zener Diode (8.2V or any other value) on board is a specialized diode designed for voltage regulation by maintaining a stable voltage over a wide range of current, commonly used in power supplies and voltage reference circuits.

Key Features

Zener Voltage: Typically 8.2V for the standard example, with other values available for different voltage regulation needs.

Power Dissipation: Commonly available in 1W or 0.5W power ratings for medium power regulation applications.

Voltage Tolerance: Around ±5% for precision voltage regulation.

Package Types: Often found in DO-41 or DO-35 glass packages with axial leads for PCB mounting and easy integration.

Maximum Reverse Leakage Current: Low leakage current (around 5-10µA) ensures efficient voltage stabilization.

Operating Temperature Range: Typically between -65°C to +200°C, suitable for various environments.

Forward Voltage Drop: Around 1.2V in forward operation, with the main function in reverse breakdown region.

Excellent voltage stability due to sharp breakdown voltage characteristics, providing consistent output regardless of input fluctuations.

Applications

Used primarily as voltage clamps or voltage regulators in power supplies to protect circuits from voltage spikes.

Provides a stable reference voltage for analog to digital converters, voltage monitoring, and waveform clipping circuits.

Common in surge suppression, switching circuits, and clipping circuits in analog and digital electronics.

Can be integrated into circuits for noise reduction with additional capacitors across the device.

This Zener Diode on board, such as the 8.2V 1W model, is an essential electronic component for voltage regulation and protection applications across a variety of electrical and electronic systems, ensuring stability and reliability.
